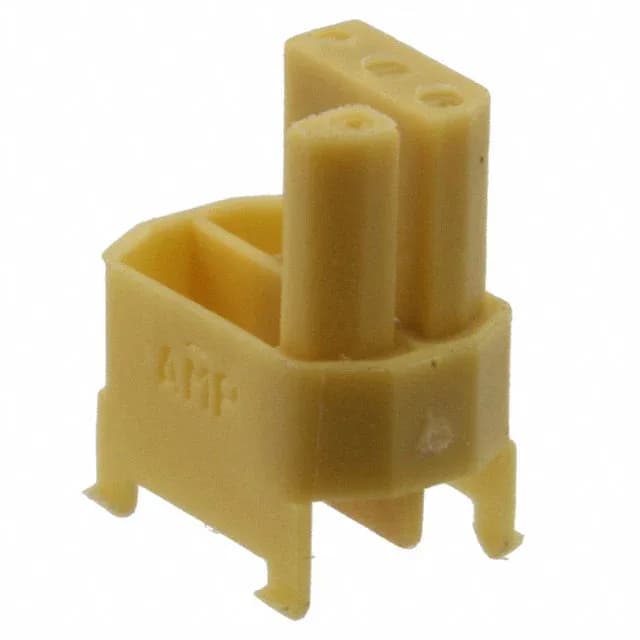

TE Connectivity AMP Connectors Z-PACK series, 6-100525-9 coding key, yellow, bulk package, ROHS3 compliant, for use with Z-Pack series backplane connectors.
| Parameter | Value |
|---|---|
| Series | Z-PACK |
| Accessory type | Coding Keys |
| Package | Bulk |
| Specifications | Yellow |
| For use with (Related products) | Z-Pack Series |
The 6-100525-9 is a coding key from the TE Connectivity Z-PACK series, designed to prevent mismating of backplane connectors by physically keying the connector pair. It is color-coded yellow for visual identification during assembly, helping ensure the correct key is installed in the correct slot.
It is supplied in bulk packaging and is ROHS3 compliant, meeting current environmental requirements for electronic assemblies.
It is a coding key for the Z-PACK series of backplane connectors. It physically keys the connector pair to prevent mismating — for example, a key in one position blocks a connector without the matching key from mating.
It is designed for use with Z-Pack series backplane connectors, but compatibility depends on the specific connector housing and the keying slot configuration. Verify the connector part number and keying position against your assembly drawing.
