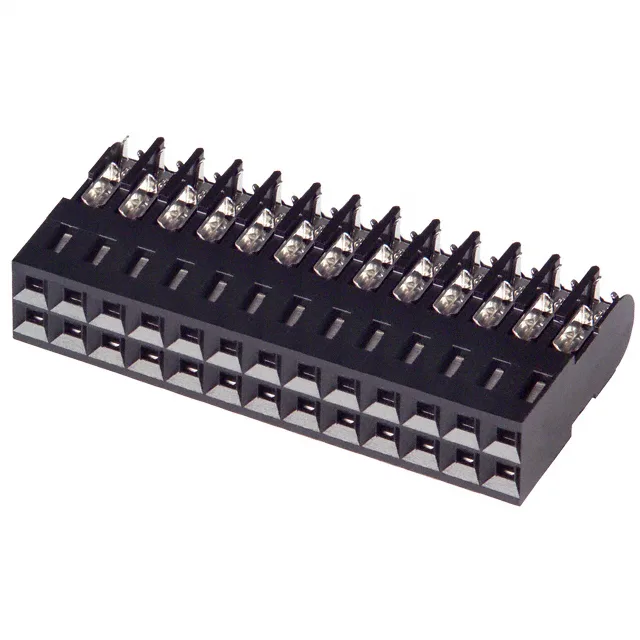

26-Position IDC Receptacle for Ribbon or Discrete Cable
Termination is insulation-displacement (IDC), which punches through the wire insulation in one press operation — no stripping, no crimping. The closed-end feature acts as a cable stop, preventing the wire bundle from pushing past the back of the connector and keeping the termination consistent across all 26 positions. Accepts 20-22 AWG wire, either discrete conductors or ribbon cable, with the 0.100" row spacing matching the cable pitch for ribbon builds.
Free-hanging (in-line) mounting means this receptacle is the cable-end half — it mates with a board-mounted 0.100" pitch header (typically the AMPMODU MT series).
