40-Position IDC Receptacle for Mass-Termination Harnesses

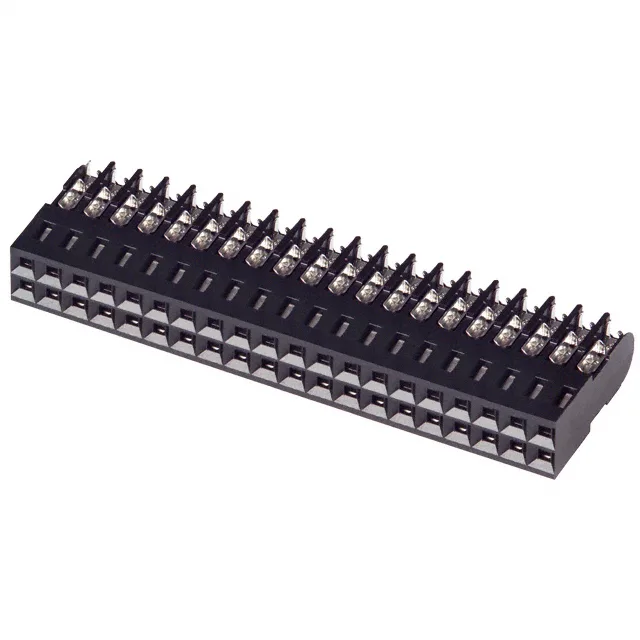

The TE Connectivity AMPMODU MT 6-102448-8 is a 40-position IDC receptacle designed for mass-termination of 20-22 AWG discrete or ribbon cable. It uses a 0.100" (2.54 mm) pitch in a 2-row layout, with female socket contacts plated in 30.0 µ" (0.76 µm) gold — a plating thickness that supports repeated mating cycles in field-service or test-fixture applications. The closed-end housing prevents over-insertion of the cable, and the free-hanging (in-line) mount lets it terminate a harness without a PCB footprint.
This receptacle mates with AMPMODU MT 0.100" pitch headers — both straight and right-angle board-mount variants in the same 40-position, 2-row configuration. The 20-22 AWG wire range covers common signal-level gauges for ribbon cable and discrete wiring.
Active Lifecycle and Sourcing
The 1-226733-4 is a 17-position AMPMODU receptacle in the same free-hanging, 2-row IDC format with a detent lock. Both use gold-plated female sockets and accept ribbon cable; the 6-102448-8 adds discrete-wire capability.
