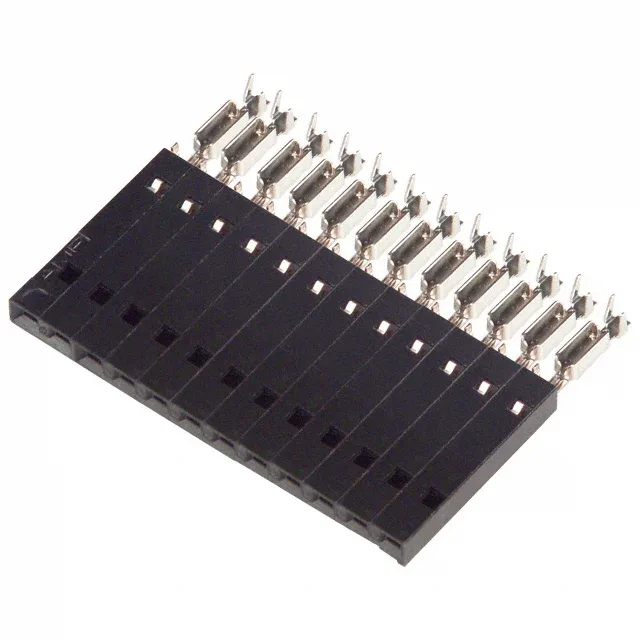

6-103975-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MTE 6-103975-1, 12P IDC Receptacle, 0.100" Pitch

MPN6-103975-1
Active

TE Connectivity AMPMODU MTE 6-103975-1, 12-position IDC receptacle, 0.100" (2.54mm) pitch, single row, gold 15.0µin female socket contacts, free-hanging, 22-26 AWG ribbon cable, closed end, black, tube.

$4.9500Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

6-103975-1 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions12
Contact finish thickness15.0µin (0.38µm)

Product details

The TE Connectivity AMPMODU MTE 6-103975-1 is a 12-position IDC receptacle designed for mass-termination to 22-26 AWG ribbon cable. The closed-end feature prevents the cable from being pushed past the contact zone, so every conductor lands on its IDC slot consistently.

The 15.0µin spec is the minimum in the mating area; the rest of the contact may have a thinner flash, but the mating interface is where it counts.

IDC Termination and Cable Prep

No stripping, no crimping. The 22-26 AWG range covers the most common flat cables: 26 AWG for dense signal runs, 22 AWG for a bit more current capacity or longer daisy-chains. The closed-end slot means you butt the cable end against the stop, then press down with a hand press or arbor tool.

Frequently asked questions

What is the mating connector for 6-103975-1?

The 6-103975-1 is a receptacle that mates with a matching AMPMODU MTE pin header of the same pitch (0.100" / 2.54mm) and position count. The header is a separate order code from the same series — typically a through-hole or surface-mount pin strip. Confirm the header part number against your BOM; the system is keyed to prevent mis-mating.

Does 6-103975-1 have a locking mechanism?

The AMPMODU MTE receptacle housing includes a detent lock feature that provides a positive latching engagement with the mating header. This is a friction-based lock, not a screw or lever, but it holds the pair together under normal handling and vibration inside an enclosure.
