TE Connectivity AMP Connectors 6-1658012-1 — Mezzanine & Stacking Connectors

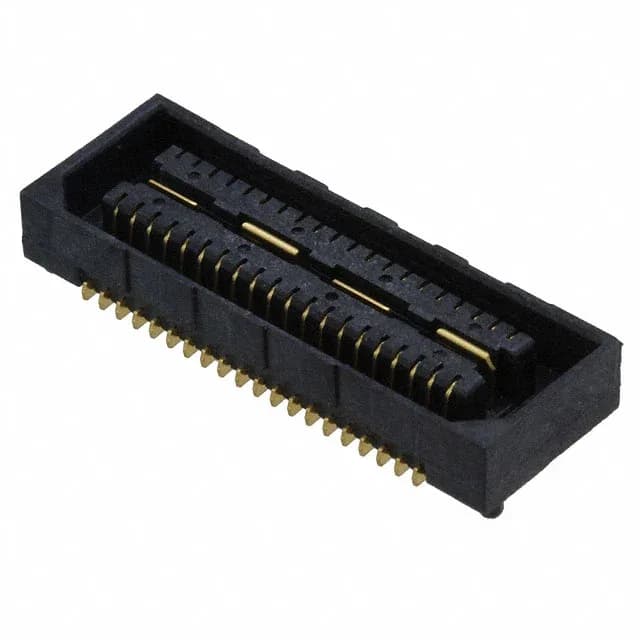

6-1658012-1 TE MICTOR 40 Position 0.80mm Pitch Receptacle

MPN6-1658012-1
Active

TE Connectivity AMP Connectors MICTOR series, 6-1658012-1, 40-position receptacle, 0.80mm pitch, SMT, gold contacts, board guide and ground bus plane.

$11.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMICTOR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6-1658012-1 specifications
ParameterValue
SeriesMICTOR
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.128\" (3.25mm)
Mated stacking heights5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Ground Bus (Plane)
Contact finishGold
Rows2
Positions40
Contact finish thickness10.0µin (0.25µm)

Product details

Board-to-board stacking with the MICTOR receptacle

The 6-1658012-1 is a 40-position receptacle from TE's MICTOR series, designed for mezzanine board stacking at a 0.80mm pitch. It mates with a matching MICTOR plug to achieve stacking heights from 5mm up to 30mm, covering nine discrete heights.

Ground bus plane and board guide

This receptacle includes a ground bus plane and board guide features.

Gold contact finish at 10.0µin (0.25µm) thickness ensures reliable performance over repeated mating cycles, typical for dense board-to-board interconnects where signal integrity matters.

Frequently asked questions

Does 6-1658012-1 have a ground bus plane feature?

Yes, the part includes a ground bus plane and a board guide, which help with signal return path and alignment during assembly.

Is 6-1658012-1 RoHS compliant?

Yes, it is ROHS3 compliant.
