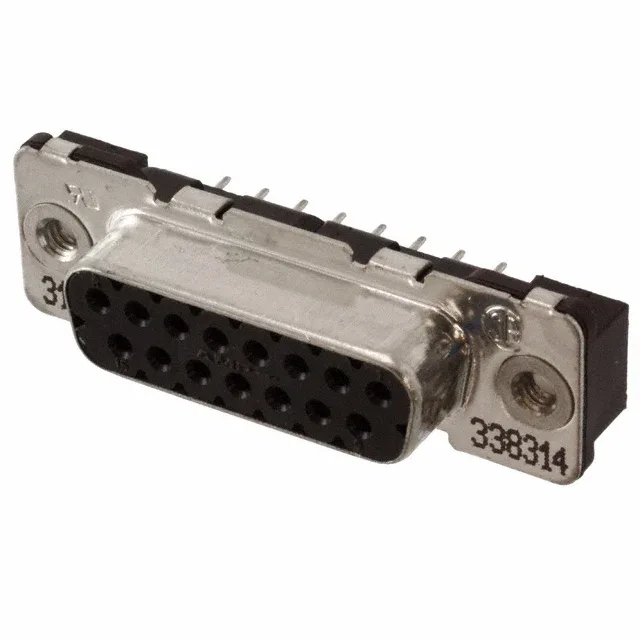

15-Position D-Sub Receptacle, Vertical Solder, 4-40 Threaded Inserts
It carries gold-plated phosphor bronze signal contacts rated 6 A per circuit, housed in a black UL94 V-0 rated polyester dielectric with a steel tin-plated shell. The flange features housing/shell threaded inserts sized for 4-40 jackscrews, making this the receptacle half for standard DA-15 cable plugs or panel-mount connectors.
Threaded Insert and Flange Detail
The flange feature is listed as Housing/Shell (4-40), meaning the threaded inserts are integrated into the shell itself rather than on the mating side. This is the standard configuration for a receptacle that mounts to a panel or bracket, accepting 4-40 jackscrews from the mating plug. The shell size is 2 (DA, A), which corresponds to the 15-position layout — the same footprint as a standard DA-15.
Comparison with 3-338314-2
The 3-338314-2 is the same 15-position DA receptacle from the same AMPLIMITE HDP-20 series, with identical specs — 6 A, gold contacts, vertical solder, UL94 V-0 — except for the flange feature. The 3-338314-2 uses Mating Side, Female Screwlock (4-40) instead of Housing/Shell (4-40) threaded inserts. The difference is where the threaded feature sits: the 6-338314-2 has inserts in the shell for panel mounting; the 3-338314-2 has female screwlocks on the mating face for direct plug retention. Choose based on whether the receptacle mounts to a panel (6-338314-2) or floats on the board and needs the plug to lock to it (3-338314-2).
