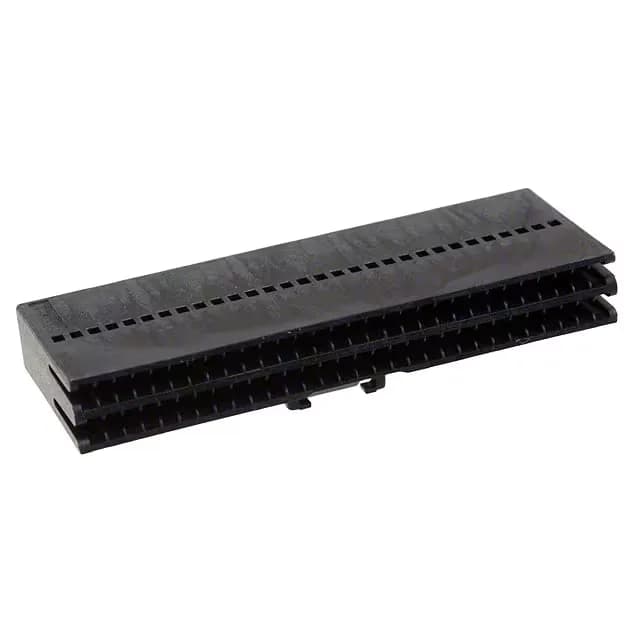

TE Connectivity AMPMODU System 50 FFC receptacle housing, order code 6-487937-0, 60 positions, dual row, 0.050" (1.27mm) pitch, 1.5 A, 100 V, latch lock, UL94 V-0 black polyester housing, bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Bulk |
| Rows | 2 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 60 |
The 6-487937-0 is the 60-circuit member of TE's AMPMODU System 50 FFC receptacle housing line, accepting 0.05-0.08mm thick flat flex cable.
The housing accepts FFC thicknesses from 0.05mm to 0.08mm, so confirm the cable thickness against that window before specifying the terminal.
The housing ships without contacts. Verify the FFC thickness (0.05-0.08mm) matches the terminal specification before placing the order.
