Fastin-Faston female terminal for 0.250" tabs

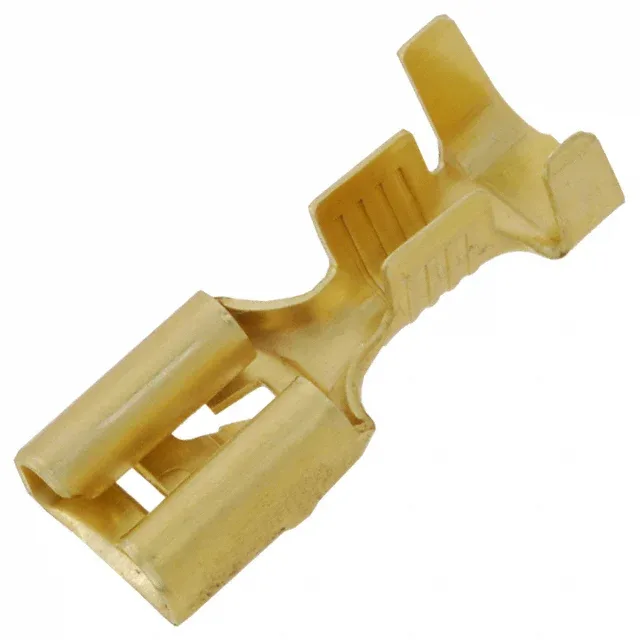

The 60249-1 is the non-insulated female member of TE's Fastin-Faston quick-disconnect terminal line, accepting 12-16 AWG wire and mating to 0.250" (6.35mm) wide tabs. Crimp termination and free-hanging in-line mounting suit it for field-service and harness assembly where insulation is not required over the contact barrel.
Plating variants across the 60249 base
The 60249-1 carries a brass contact with no specified plating finish. Within the same base number, the 60249-2 offers tin-plated contacts and the 60249-3 offers silver-plated contacts — all three share the same 0.250" tab width, 12-16 AWG wire range, and 0.750" overall length.
