TE Connectivity AMP Connectors 60384-1 — Quick-Disconnect Terminals

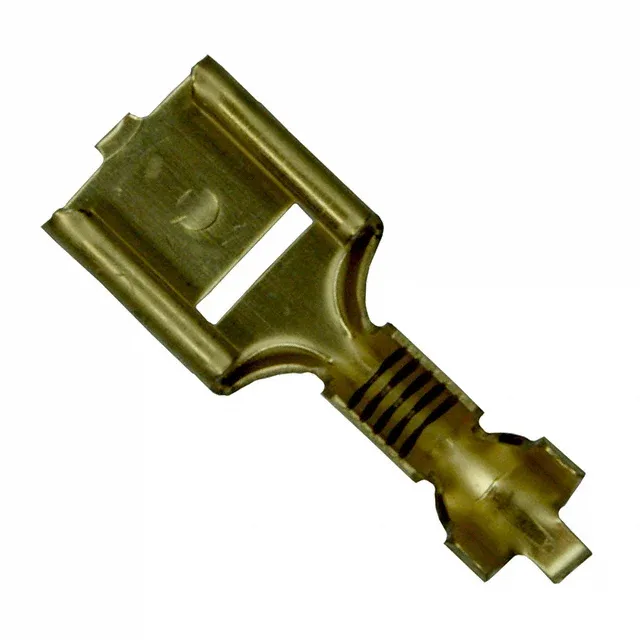

60384-1 TE Amplivar Faston QC Receptacle 0.250" 16-20 AWG

MPN60384-1
Active

TE Connectivity Amplivar, Faston quick disconnect receptacle, order code 60384-1, female, 0.250" (6.35mm) tab width, 16-20 AWG, non-insulated, crimp termination, brass contact, free hanging, tape and reel.

$0.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAmplivar, Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

60384-1 specifications
ParameterValue
SeriesAmplivar, Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-20 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.280\" (7.11mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.690\" (17.53mm)

Product details

Quick disconnect receptacle, 0.250" tab, 16-20 AWG

The 60384-1: The brass contact is non-insulated and rated for free-hanging in-line mounting; the part is supplied on tape and reel with cut tape option.

Wire gauge selection across the series

Within the same 0.250" tab width, the 60384-1 (16-20 AWG) sits between the 60385-2 (14-18 AWG) and the 63623-1 (19-24 AWG) — all share the same 0.690" overall length, brass contact material, and non-insulated free-hanging design, so the choice reduces to matching the wire gauge to the terminal's crimp range. The 63622-1 also covers 14-18 AWG but uses a thinner 0.020" (0.51mm) tab stock and specifies an insulation diameter range of 0.120" to 0.170" (3.05mm to 4.32mm), which may affect crimp tool setup.

Frequently asked questions

What compliance documentation is available for 60384-1?

The part is ROHS3 Compliant.

Will 60384-1 drop into a panel specified around 60385-2 without rewiring?

Both share the same 0.250" tab width, 0.690" overall length, and non-insulated free-hanging form factor, so the mechanical fit is identical. The difference is wire gauge range: 60384-1 accepts 16-20 AWG, while 60385-2 accepts 14-18 AWG. If the wire in the panel is within 16-20 AWG, the 60384-1 can be used without rewiring.
