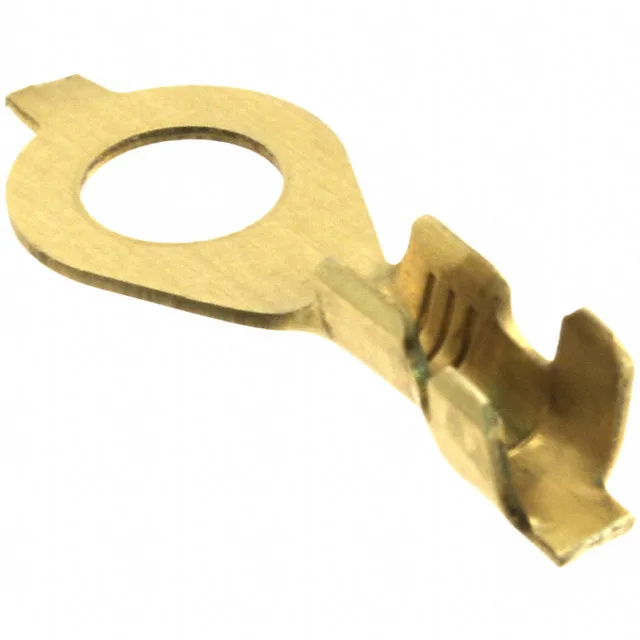

TE 60394-1 Ring Terminal, 16-20 AWG, #10 Stud, Non-Insulated
TE Connectivity ring terminal, order code 60394-1, 16-20 AWG, #10 stud, 0.020" (0.51mm) thickness, brass contact material, non-insulated, free hanging (in-line), crimp termination, serrated termination.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-20 AWG |
| Contact material | Brass |
| Width - outer edges | 0.342\" (8.69mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.020\" (0.51mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Length - overall | 0.764\" (19.41mm) |
| Insulation diameter | 0.100\" ~ 0.140\" (2.54mm ~ 3.56mm) |
Sourcing this connector
TE Connectivity AMP Connectors 60394-1 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
