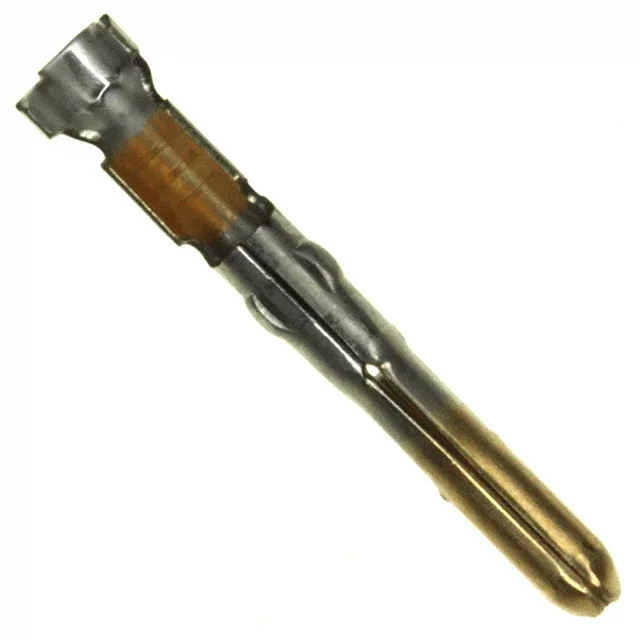

TE Connectivity Commercial MATE-N-LOK crimp pin, order code 60618-5, 18-24 AWG, gold-plated contact, 30.0µin (0.76µm) finish, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Wire gauge | 18-24 AWG |
| Package | Bulk |
| Pin or socket | Pin |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
Within the Commercial MATE-N-LOK series the 60618-5 pin shares the 18-24 AWG wire range and 30.0µin gold finish with the 60618-6 pin, and the 60617-5 and 60617-6 sockets accept the same wire and plating — the selection is pin vs socket for the mating half.
The 60618-6 is the same pin contact with identical wire range and gold plating — it is a parametric peer, not a second-source. Both are active and functionally identical for the same housing.
