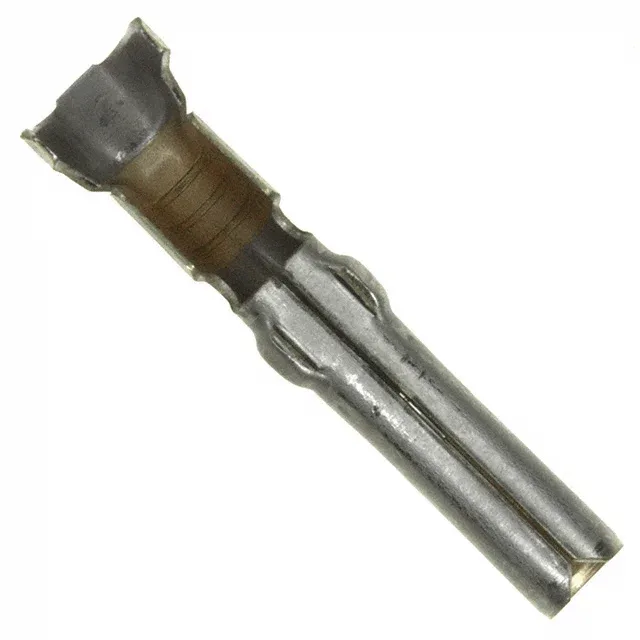

TE Connectivity AMP Connectors Commercial MATE-N-LOK socket, order code 60619-5, 14-20 AWG, gold-plated contact, 30.0µin (0.76µm) plating, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Wire gauge | 14-20 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
Within the same 60619 base number the 60619-4 offers the same 14-20 AWG wire range and crimp termination but with tin contact finish — the 60619-5's gold plating suits applications requiring higher mating cycle life or corrosion resistance. The 60617-6 and 60617-5 are 18-24 AWG sockets in the same Commercial MATE-N-LOK series with identical 30.0µin gold plating — the wire gauge difference is the primary selection axis.
The 60619-5 is available to order in bulk package. Request a quote for current pricing and lead time.
The 60619-5 accepts 14-20 AWG wire while the 60617-6 accepts 18-24 AWG — the wire gauge range differs, so the contact may not crimp correctly on the same wire size. Both are sockets in the Commercial MATE-N-LOK series with the same gold plating thickness.
