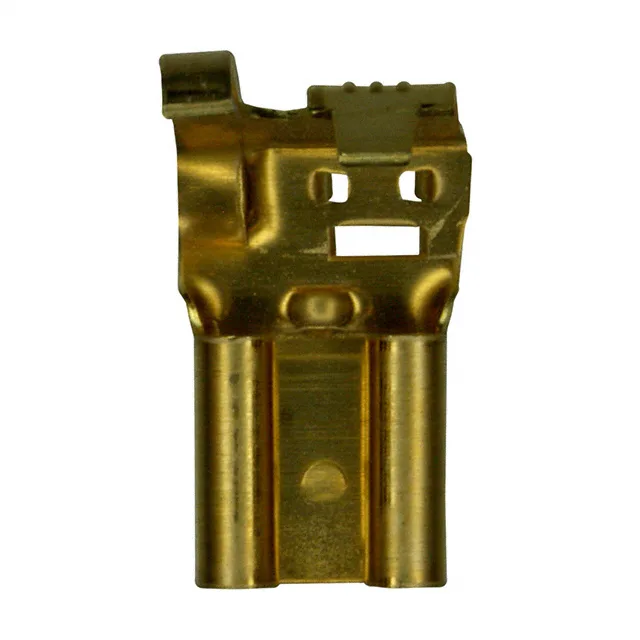

TE Connectivity AMP Faston quick-disconnect terminal, order code 60641-1, female, 0.250" (6.35mm) tab width, 12-18 AWG, brass contact, non-insulated, free-hanging right-angle flag, crimp termination.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 12-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Insulation diameter | 0.110\" ~ 0.210\" (2.79mm ~ 5.33mm) |
The 60641-1 is a non-insulated female flag terminal in TE's Faston series, accepting 12-18 AWG wire and mating to 0.250" (6.35mm) wide tabs.
Within the Faston flag-terminal family, the 60641-1 (0.250" tab width) is the 12-18 AWG member; the 60529-1 uses a narrower 0.187" (4.75mm) tab and accepts 16-20 AWG wire, while the 63445-1 shares the same 0.250" width and 12-18 AWG range but differs in insulation-diameter tolerance.
No — the 60641-1 mates with 0.250" (6.35mm) tabs, while the 60529-1 uses 0.187" (4.75mm) tabs. The tab width mismatch prevents direct interchange without changing the mating tab.
