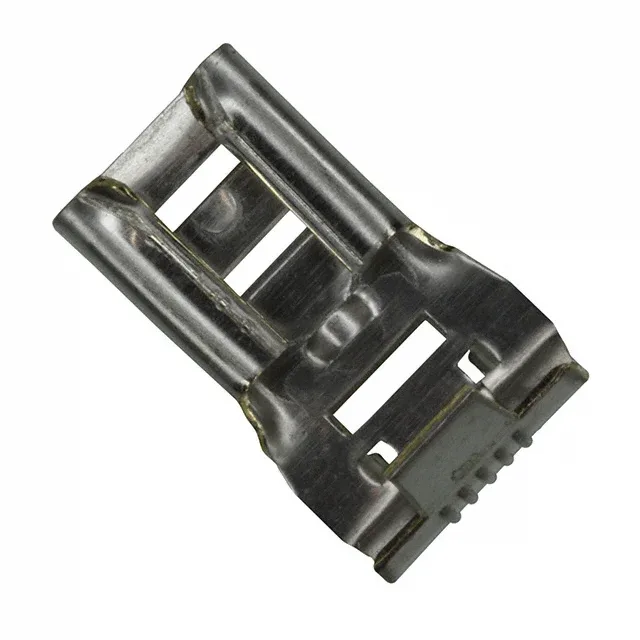

TE Connectivity AMP Connectors 61177-2 — Quick-Disconnect Terminals

TE Faston 61177-2 Flag Receptacle, 0.250" Tab, 12-18 AWG

MPN61177-2
Active

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 61177-2, female flag receptacle, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 12-18 AWG, tin-plated brass, crimp termination, free-hanging right-angle mount.

$0.2600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

61177-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge12-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin

Product details

Flag receptacle for 0.250" tabs

The 61177-2 is a female flag-style quick-disconnect receptacle in TE's Faston series, accepting 0.250" (6.35mm) wide by 0.032" (0.81mm) thick male tabs. It crimps onto 12-18 AWG wire and mounts free-hanging with a right-angle orientation — the flag body routes the wire parallel to the tab plane, saving space in tight panel layouts. Contact is tin-plated brass; no insulation sleeve, so a separate insulating boot or shrink tubing is needed where exposed metal is a concern.

Sourcing & compliance

Available in Tape & Reel or Cut Tape packaging.
