TE Connectivity AMP Connectors 61202-1 — Quick-Disconnect Terminals

61202-1 TE Faston QC Receptacle, 22-26 AWG, 0.250"

MPN61202-1
Active

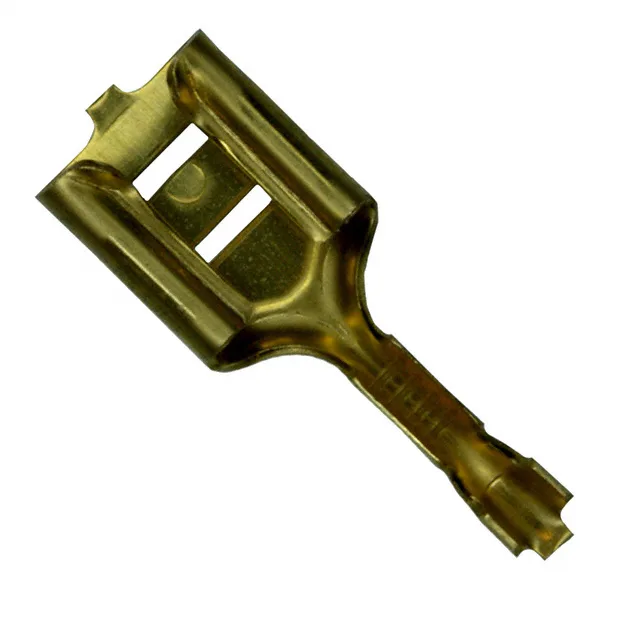

TE Connectivity AMP Faston quick-disconnect terminal, order code 61202-1, female receptacle, 0.250" (6.35mm) tab width, 22-26 AWG, non-insulated, brass contact, crimp termination, free hanging.

$0.2200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

61202-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge22-26 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.755\" (19.18mm)
Insulation diameter0.040\" ~ 0.060\" (1.02mm ~ 1.52mm)

Product details

What it mates with

The 61202-1 is a female quick-disconnect terminal in TE's Faston series, accepting 0.250" (6.35mm) male tabs. Crimp termination to 22-26 AWG wire, free-hanging in-line mount — no insulation sleeve. Brass contact, non-insulated. Overall length 0.755" (19.18mm); tab thickness 0.032" (0.81mm).

Same-series tab width peers

The 61202-1 shares its 0.250" tab width and brass crimp construction with the Utilux-series 1-1627194-4 (15-18 AWG) and 1-1659250-0 (17-20 AWG, tin finish). Both are active, box-packaged, free-hanging receptacles — wire gauge and insulation diameter differ.

Frequently asked questions

Will the 61202-1 drop into a panel specified for 1-1627194-4?

Both are 0.250" tab-width female receptacles with brass contacts and free-hanging mount. The 1-1627194-4 accepts 15-18 AWG wire (insulation diameter 0.102" to 0.122") while the 61202-1 takes 22-26 AWG (insulation diameter 0.040" to 0.060"). If the wire gauge and insulation fit the application, the tab dimensions match.
