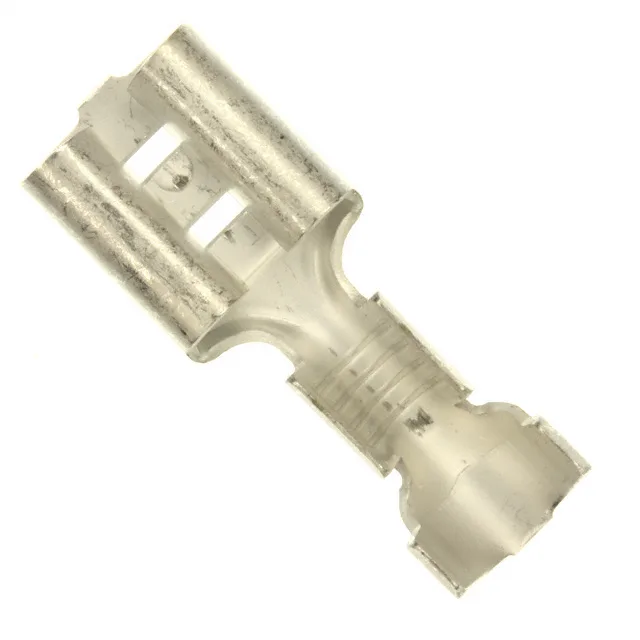

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 61227-1, female receptacle, 0.250" (6.35mm) tab width, 10-14 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging (in-line), bulk packaging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-14 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.815\" (20.70mm) |
| Insulation diameter | 0.150\" ~ 0.200\" (3.81mm ~ 5.08mm) |
The 61227-1 is a non-insulated female Faston quick-disconnect terminal accepting 10-14 AWG wire. Tab width is 0.250" (6.35mm) with a 0.032" (0.81mm) tab thickness and 0.305" (7.75mm) tab length. Termination is crimp-only, free hanging (in-line) mounting. The contact is tin-plated brass.
The 61227-1 accepts 10-14 AWG wire. The insulation diameter range is 0.150" ~ 0.200" (3.81mm ~ 5.08mm).
