TE Connectivity AMP Connectors 61549-1 — Quick-Disconnect Terminals

TE 61549-1 Faston Quick-Disconnect Terminal, 0.110" Tab

MPN61549-1
Active

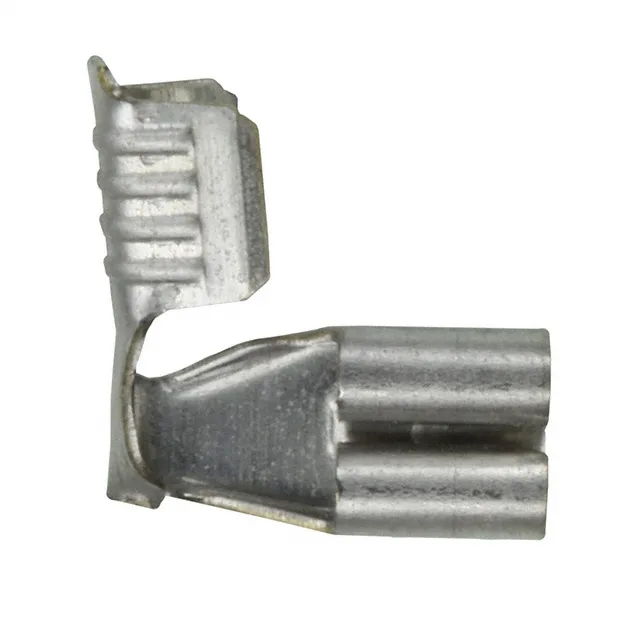

TE Connectivity AMP Faston quick-disconnect terminal, order code 61549-1, female, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 16-22 AWG, tin-plated brass, non-insulated, free-hanging right-angle flag, crimp termination.

$0.1100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 61549-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

61549-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge16-22 AWG
Tab width0.110\" (2.79mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.150\" (3.81mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Contact finishTin

Product details

0.110" flag terminal for 16-22 AWG

The 61549-1: Tab dimensions are 0.110" (2.79mm) width by 0.020" (0.51mm) thickness; the contact is tin-plated brass with no insulation sleeve.

Tab width and thickness across the series

Within the Faston family, the 61549-1's 0.110" tab width and 0.020" thickness match the 141352-2 (also 0.110" x 0.020") but differ from the 61158-1, which shares the 0.110" width but uses a thicker 0.025" (0.64mm) tab — the thicker tab requires a different mating receptacle and crimp die.

Frequently asked questions

Will 61549-1 drop into a panel specified around 61158-1 without rewiring?

No. Both terminals share the same 0.110" tab width, but the 61549-1 has a 0.020" tab thickness versus the 61158-1's 0.025" tab — the thicker tab will not seat fully in a receptacle sized for 0.020" and may not latch or carry rated current.
