TE Connectivity AMP Connectors 61624-1 — Ring Terminals

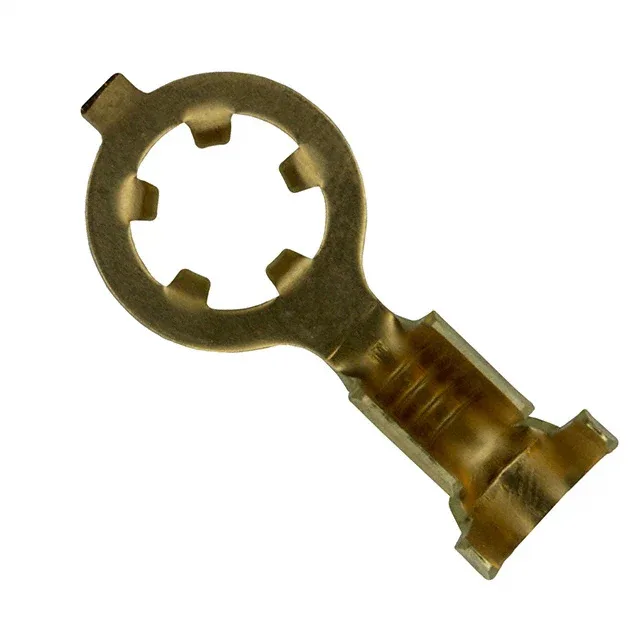

TE 61624-1 Ring Terminal, 12-16 AWG, #8 Stud, Non-Insulated

MPN61624-1
Active

TE Connectivity AMP Connectors ring terminal, order code 61624-1, 12-16 AWG, #8 stud size, 0.025" (0.64mm) thickness, non-insulated, brass contact material, crimp termination, free hanging (in-line), Tape & Reel packaging.

$0.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

61624-1 specifications
ParameterValue
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge12-16 AWG
Contact materialBrass
Width - outer edges0.370\" (9.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesInner Teeth, Serrated Termination
Thickness0.025\" (0.64mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)8 Stud
Insulation diameter0.130\" ~ 0.170\" (3.30mm ~ 4.32mm)

Product details

12-16 AWG ring terminal for #8 stud

The 61624-1: The brass contact is 0.025" (0.64mm) thick with inner teeth and serrated termination for grip on stranded wire; the insulation diameter range is 0.130" to 0.170" (3.30mm to 4.32mm).

Crimp termination, free-hanging mount

Termination is by crimp only, with the terminal mounted free-hanging (in-line) — no insulation support barrel, so the crimp must be applied to the bare conductor within the specified wire range.

Peer terminals in the same stud size

The 61624-1 (0.025" thick, 12-16 AWG) is thicker than the 140546 (0.024" thick, 14-18 AWG) and the 640102-1 (0.030" thick, 14-18 AWG) — all three are #8 stud, non-insulated, free-hanging brass ring terminals, so the wire gauge and thickness are the selection axes.

Frequently asked questions

What compliance documentation is available for 61624-1?

The terminal is ROHS3 Compliant per the manufacturer listing.

Will 61624-1 fit a panel designed for 640102-1?

Both are #8 stud, non-insulated, free-hanging ring terminals with brass contacts, but the 61624-1 accepts 12-16 AWG at 0.025" thickness while the 640102-1 accepts 14-18 AWG at 0.030" thickness — the wire range and thickness differ, so confirm the wire gauge and clearance before substitution.
