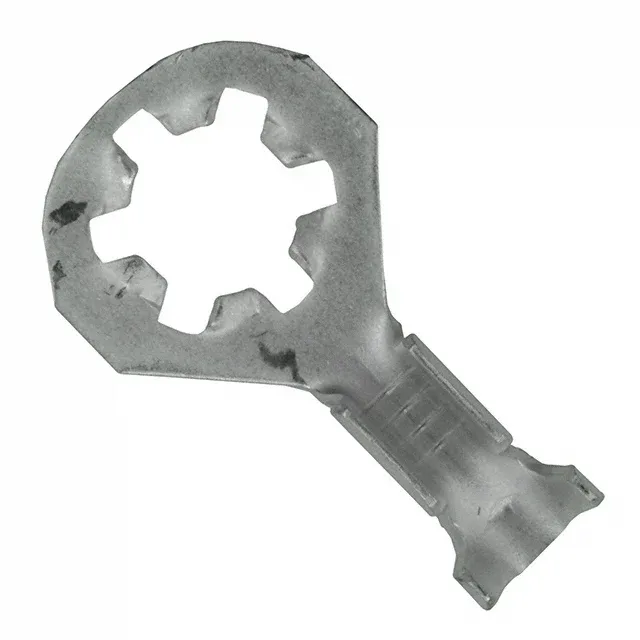

Non-insulated oval ring terminal for #10 stud
The 61795-1: The terminal is tin-plated steel with inner teeth and serrated termination for grip during crimp, and is rated for free-hanging (in-line) mounting.
TE Connectivity 61795-1 Ring Terminal, Oval, 14-18 AWG
MPN61795-1
Active
TE Connectivity AMP Connectors ring terminal, order code 61795-1, oval, non-insulated, 14-18 AWG, #10 stud, 0.025" (0.64mm) thickness, tin-plated steel, crimp termination, free hanging (in-line).
$0.1000Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Oval |
| Wire gauge | 14-18 AWG |
| Contact material | Steel |
| Width - outer edges | 0.445\" (11.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Inner Teeth, Serrated Termination |
| Thickness | 0.025\" (0.64mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.772\" (19.61mm) |
| Insulation diameter | 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm) |
Product details
Frequently asked questions
Who supplies 61795-1 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors supplies the 61795-1. Volume pricing is quoted per BOM quantity against the current market; no stock-holding claim is made.
