TE Connectivity AMP Connectors 62112-2 — Quick-Disconnect Terminals

TE 62112-2 Faston QC RCPT/TAB 18-22AWG 0.110

MPN62112-2
Active

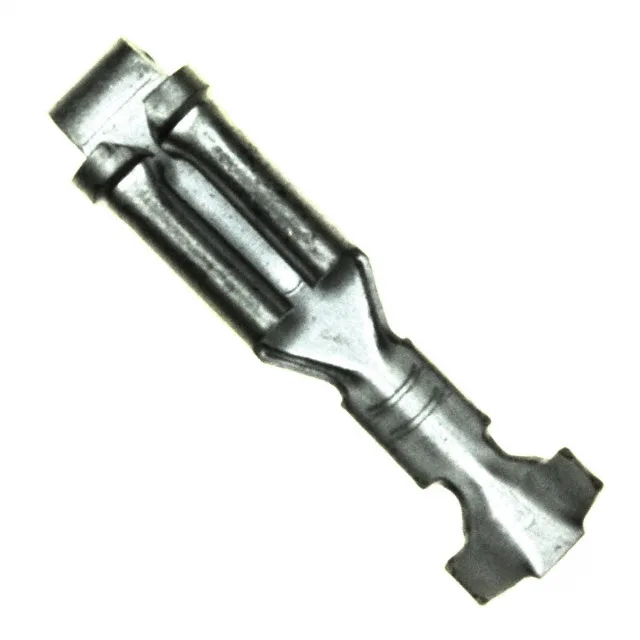

TE Connectivity AMP Faston stacked quick-disconnect terminal, order code 62112-2, female and male gender, 0.110" (2.79mm) tab width, 0.250" (6.35mm) tab length, 18-22 AWG, non-insulated, crimp termination, tin-plated brass contact.

$0.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

62112-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStacked
Wire gauge18-22 AWG
Tab width0.110\" (2.79mm)
Contact materialBrass
GenderFemale and Male
PackageBulk
InsulationNon-Insulated
Tab length0.250\" (6.35mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Contact finishTin
Length - overall0.600\" (15.24mm)
Insulation diameter0.060\" ~ 0.100\" (1.52mm ~ 2.54mm)

Product details

Stacked quick-disconnect terminal

The 62112-2 is a non-insulated Faston stacked quick-disconnect terminal combining a female receptacle and male tab in one crimp body, accepting 18-22 AWG wire. Tab width is 0.110" (2.79mm) with a 0.020" (0.51mm) thickness; the tin-plated brass contact carries the current path through the crimp barrel.

Tab width and wire range across the series

The 62112-2's 0.110" tab width and 18-22 AWG wire range sit alongside the 0.250" tab width of the 61988-2 (18-22 AWG, 0.032" tab thickness) and the 0.110" tab width of the 160625-2 (17-20 AWG) — the wire gauge and tab thickness differ, so match the terminal to the wire diameter and mating tab.

Frequently asked questions

What does the female and male gender designation mean for this terminal?

The 62112-2 is a stacked terminal that combines a female receptacle and a male tab in a single crimp body, allowing it to serve as a pass-through or daisy-chain point in a wire harness.

Will 62112-2 drop into a panel specified around 61988-2 without rewiring?

No — the 62112-2 uses a 0.110" tab width and 0.020" tab thickness, while the 61988-2 uses a 0.250" tab width and 0.032" tab thickness; the mating tab and panel cutout differ.
