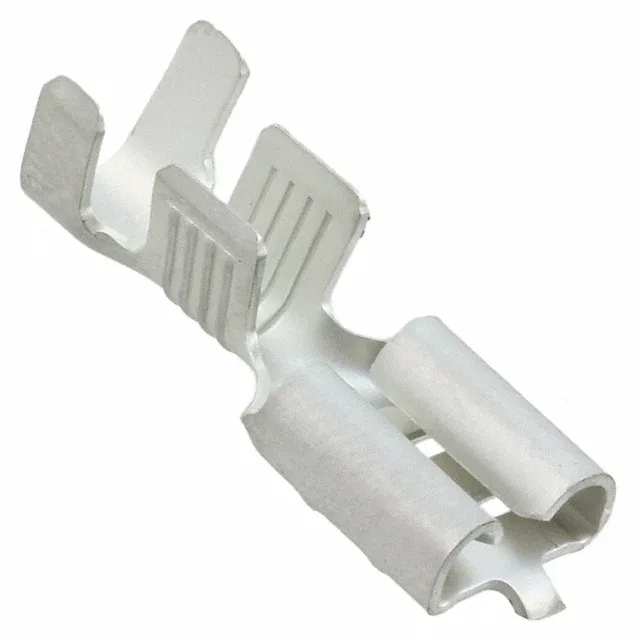

TE Connectivity AMP Faston quick-disconnect terminal, order code 62428-3, female, 0.250" (6.35mm) tab width, 10-12 AWG, tin-plated phosphor bronze, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.302\" (7.67mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.770\" (19.56mm) |
| Insulation diameter | 0.150\" ~ 0.200\" (3.81mm ~ 5.08mm) |
The 62428-3: Tin-plated phosphor bronze contact material and crimp termination suit free-hanging inline installation.
The 62428-3's 10-12 AWG range sits between the 10-11 AWG of the 1-160301-9 and the 14-18 AWG of the 170213-3 — all three share the same 0.250" tab width, 0.032" tab thickness, and tin-plated phosphor bronze construction.
The terminal is ROHS3 Compliant per the manufacturer's listing.
Both terminals share the same 0.250" tab width, 0.032" tab thickness, and free-hanging mounting — the 62428-3 accepts 10-12 AWG while the 1-160301-9 accepts 10-11 AWG, so the wire gauge match must be confirmed.
