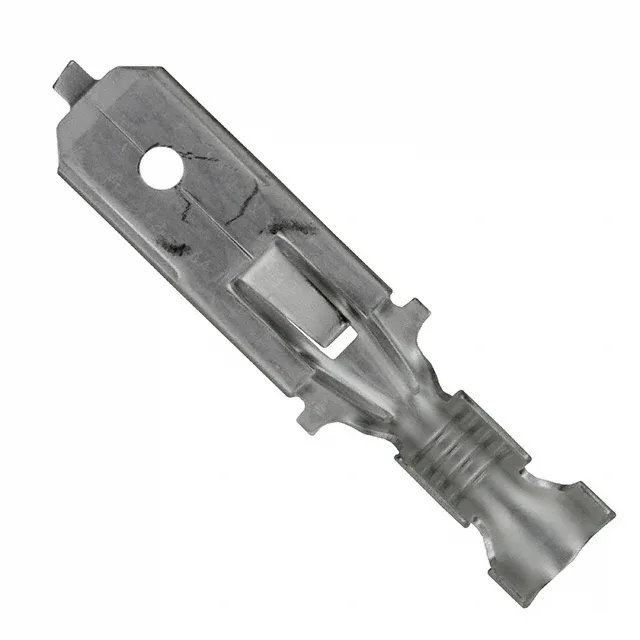

TE Connectivity 62553-3 Fastin-Faston Tab, 0.250", 18-22 AWG, Tin
MPN62553-3
Active
Te-Connectivity 62553-3 Quick Connects, Quick Disconnect Connectors.
$0.2400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.620\" (15.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 1.107\" (28.12mm) |
| Insulation diameter | 0.085\" ~ 0.125\" (2.16mm ~ 3.18mm) |
