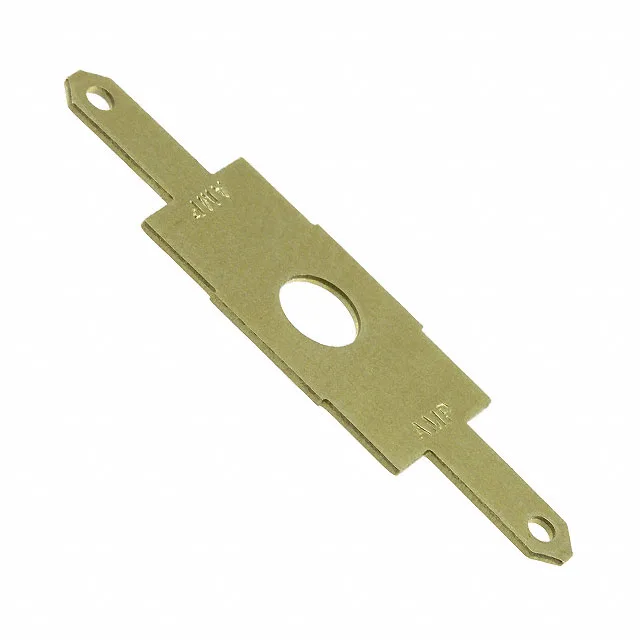

TE Connectivity AMP Connectors Faston quick-disconnect tab, order code 62628-2, male, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, non-insulated, brass contact, screw/rivet/stud termination, board or chassis mount, bulk package.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Board, Chassis |
| Terminal type | Standard |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Features | 2 Tabs |
| Insulation | Non-Insulated |
| Termination | Screw, Rivet, Stud |
| Tab thickness | 0.020\" (0.51mm) |
| Length - overall | 1.151\" (29.24mm) |
The 62628-2 is a male Faston tab in the TE Connectivity AMP Connectors quick-disconnect line, with a 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. The tab is non-insulated, made from brass, and terminates via screw, rivet, or stud — suited for board or chassis mounting.
The 62628-2 is a male tab.
