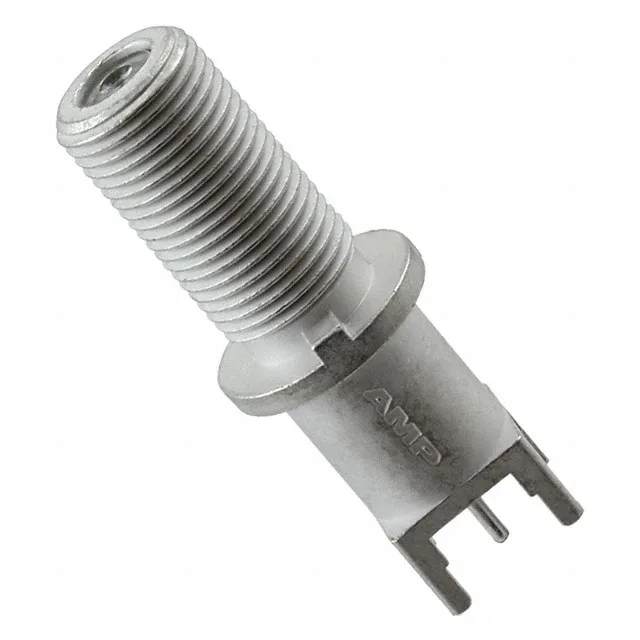

TE Connectivity F Type Jack, Female Socket, 75 Ohms, 1 GHz, Through Hole, Solder Termination, Threaded, 500 V, Bulk.
| Parameter | Value |
|---|---|
| Mounting type | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Operating temperature | -65°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP); Polyoxymethylene (POM) Acetal |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 75 Ohms |
| Body finish | Tin |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Tin |
Rated to 1 GHz with a 500 V voltage rating, it suits CATV, satellite, and broadband video distribution where the 75 Ohm impedance matches the cable and head-end equipment. The through-hole solder termination and shield solder tab provide a reliable ground reference through the board.
Zinc body with tin finish, centre contact of phosphor bronze with tin plating. The dielectric uses polymethylpentene (PMP) and polyoxymethylene (POM) acetal.
The 6274020-1 is a 75 Ohm F-type jack, matching the standard impedance for CATV and satellite distribution systems.
Rated to 1 GHz maximum frequency, covering the bandwidth for standard-definition and high-definition video signals over coaxial cable.
