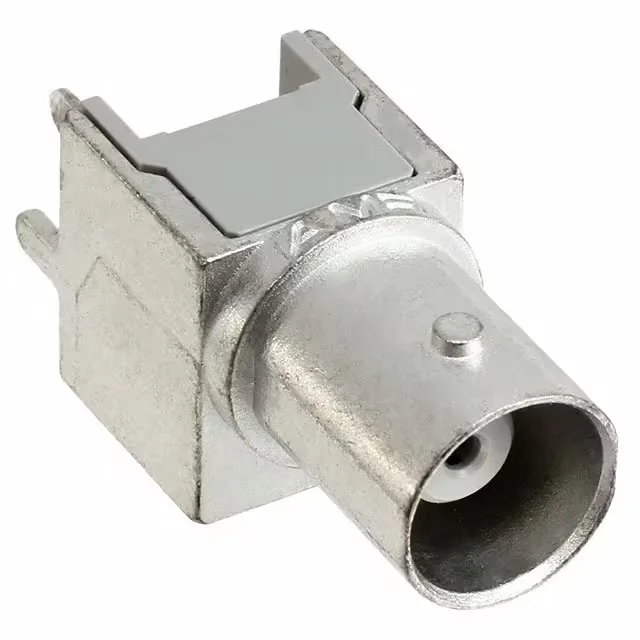

6274315-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 6274315-1 BNC Jack, 50 Ohm, 4 GHz

MPN6274315-1
Active

TE Connectivity BNC series, 6274315-1, Jack, Female Socket, 1 Port, 50 Ohm, 4 GHz, Through Hole, Solder Termination, 500 V, 500 Mating Cycles, Bulk.

$3.2400Ref. price · indicative, final on quote
StockIn Stock (50)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

6274315-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyphenylene Oxide (PPO)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50Ohm
Body finishTin
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingSilver

Product details

The bayonet lock coupling gives a quick quarter-turn mate — standard for test equipment, instrumentation panels, and telecom backhaul where the connector sees frequent connect-disconnect cycles.

Mating & Termination

The dielectric is polyphenylene oxide (PPO), which holds the 50 Ohm impedance through the launch. Mates with any standard BNC plug with a bayonet lock; no keying or polarisation beyond the BNC bayonet slot, so the signal path is impedance-matched only when the cable side is also 50 Ohm.

Frequently asked questions

Is 6274315-1 active or obsolete?

The 6274315-1 carries an Active lifecycle status per the manufacturer — full production, no end-of-life notice.

Is 6274315-1 compatible with RG58 cable?

The 6274315-1 is a PCB-mount jack, not a cable-mount connector. For cable-side compatibility, you would need a BNC plug designed for RG58 — the 6274315-1 mates with any standard BNC bayonet-lock plug, but the cable type is determined by the plug, not this jack.
