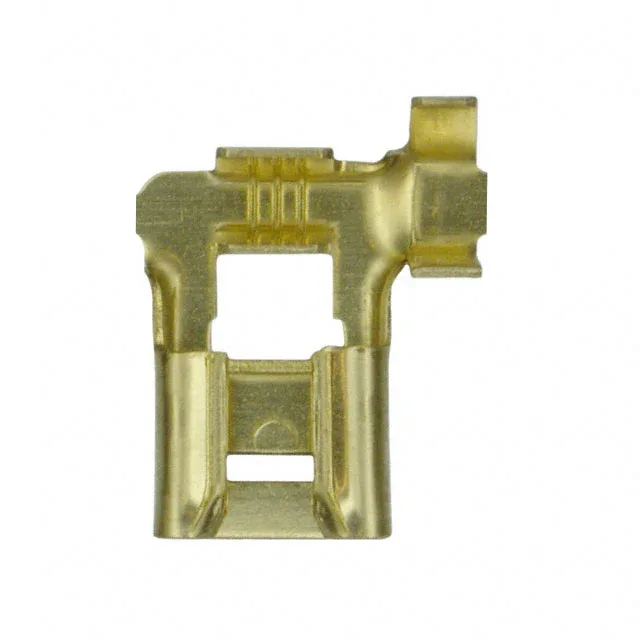

TE Connectivity AMP Faston quick-disconnect receptacle, order code 63096-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, brass, non-insulated, angled 90° flag, crimp termination, free hanging right-angle.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.240\" (6.10mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Insulation diameter | 0.110\" ~ 0.160\" (2.79mm ~ 4.06mm) |
The 63096-1: Crimp termination on 14-18 AWG wire, free-hanging right-angle (flag) orientation — the brass contact carries no insulation sleeve.
The 90° flag body routes the wire parallel to the tab plane, useful for tight clearance against a panel or bus bar. The crimp barrel accepts insulation diameters from 0.110" to 0.160" (2.79mm to 4.06mm).
