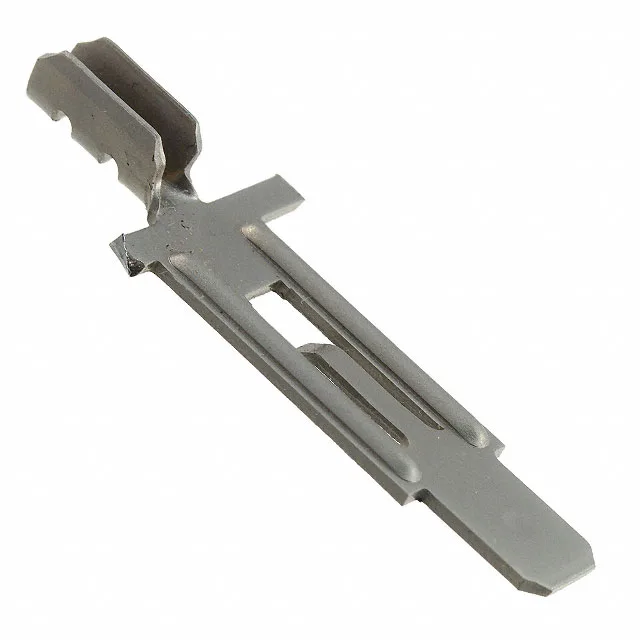

TE Connectivity AMP Connectors Faston quick-disconnect tab, order code 63104-1, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 15-20 AWG, nickel-plated steel, crimp termination, free hanging, non-insulated.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 15-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Steel |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | High Temperature |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Nickel |
The 63104-1: Contact finish is nickel over steel, rated for high-temperature environments per the series designation.
The steel base material with nickel plating supports applications where elevated ambient temperatures exceed the capability of brass terminals — the 63104-1 carries a High Temperature feature flag.
The 63104-1 is a male tab — it mates with a female Faston receptacle of matching 0.250" (6.35mm) width.
No — the 63315-1 is a female receptacle with a right-angle mounting option; the 63104-1 is a male tab for in-line free hanging. They are mating halves, not drop-in replacements.
