TE Connectivity AMP Connectors 63132-3

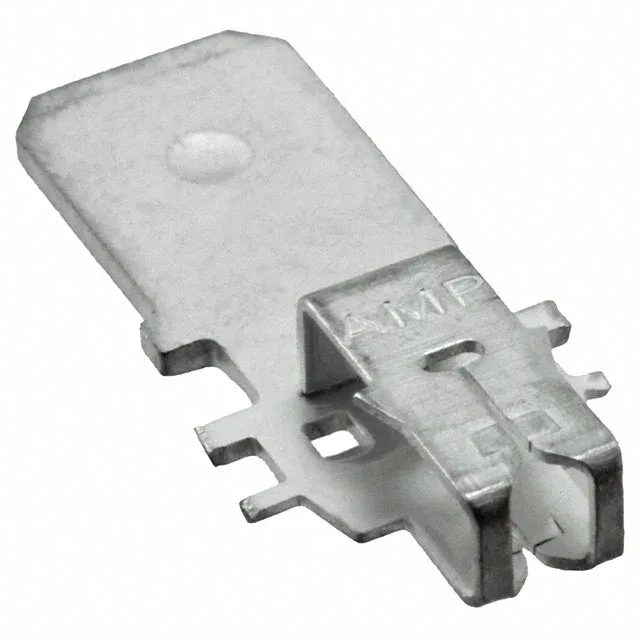

TE 63132-3 Mag-Mate Terminal, 27-30 AWG, QC 0.250

MPN 63132-3
Active

TE Connectivity AMP Connectors Faston, Mag-Mate terminal, order code 63132-3, Size 3, Style 250, 27-30 AWG, Box IDC termination, Quick Connect, Tape & Reel packaging.

$0.3500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFaston, Mag-Mate
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

63132-3 specifications
ParameterValue
SeriesFaston, Mag-Mate
Terminal typeBox IDC
Wire gauge27-30 AWG
Dimensions3
Style250
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesQC .250
TerminationQuick Connect

Product details

Magnetic wire termination, Size 3, Style 250

The 63132-3 is a Size 3, Style 250 Box IDC terminal in TE's Faston, Mag-Mate series, accepting 27-30 AWG magnetic wire with a Quick Connect tab. The Box IDC termination pierces the magnet wire insulation without stripping, and the 0.250-inch Quick Connect tab mates with standard female receptacles.

Position within the Mag-Mate series

The 63132-3 (Size 3, 27-30 AWG) is the fine-wire member of the Mag-Mate line; the 1394476-1 (Size 2, 18-20 AWG) serves heavier wire with a Pin termination, while the 63253-1 shares the same series and package format but targets a different wire range.

MPN
63132-3
