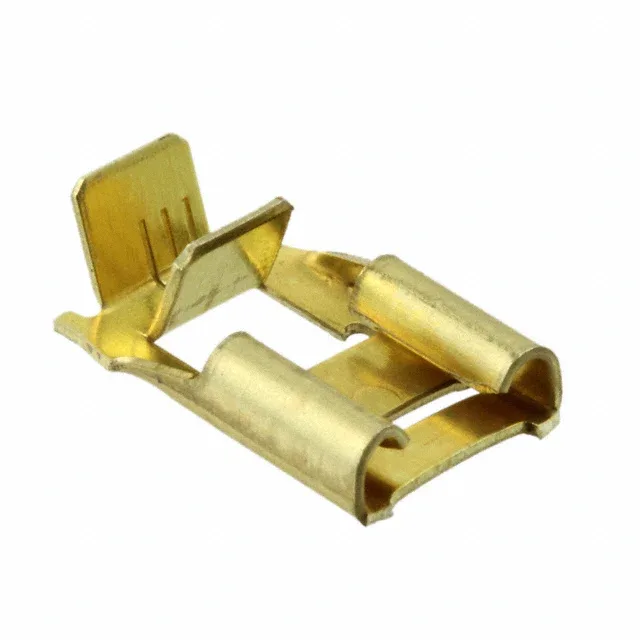

63315-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 63315-1 Faston Flag Receptacle, 0.250" Tab, 14-18 AWG

MPN63315-1
Active

TE Connectivity AMP Faston flag receptacle, order code 63315-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, non-insulated, crimp termination, free-hanging right-angle.

$0.2100Ref. price · indicative, final on quote
63315-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

63315-1 Technical Specifications
ParameterValue
SeriesFaston
Mounting typeFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)

Product details

Flag receptacle for tight wire routing

The 63315-1 is a Faston-series female flag receptacle — the right-angle body lets the wire exit parallel to the tab, useful where a straight pull would crowd the panel or harness. It accepts 14-18 AWG wire with a crimp termination and mates to a 0.250" (6.35mm) wide, 0.032" (0.81mm) thick male tab. Brass contact, no insulation sleeve.

Same tab, different wire range

The 63315-1 covers 14-18 AWG. The Utilux-series 1-1627194-4 covers 15-18 AWG at the same 0.250" tab width and 0.032" tab thickness; the 1-1659250-0 covers 17-20 AWG at a slightly narrower 0.248" tab width and 0.031" tab thickness. All three are non-insulated, free-hanging flag receptacles.

Active lifecycle status. ROHS3 compliant per. Sourced in Tape & Reel or Cut Tape packaging.

Frequently asked questions

What is the gender of the 63315-1 terminal?

Female — it is a receptacle that mates to a male tab.

Will the 63315-1 fit a panel designed for the 1-1627194-4?

Both share the same 0.250" tab width and 0.032" tab thickness, so the mating tab interface is identical. The 63315-1 accepts 14-18 AWG; the 1-1627194-4 accepts 15-18 AWG. For 14 AWG wire the 63315-1 is the fit.
