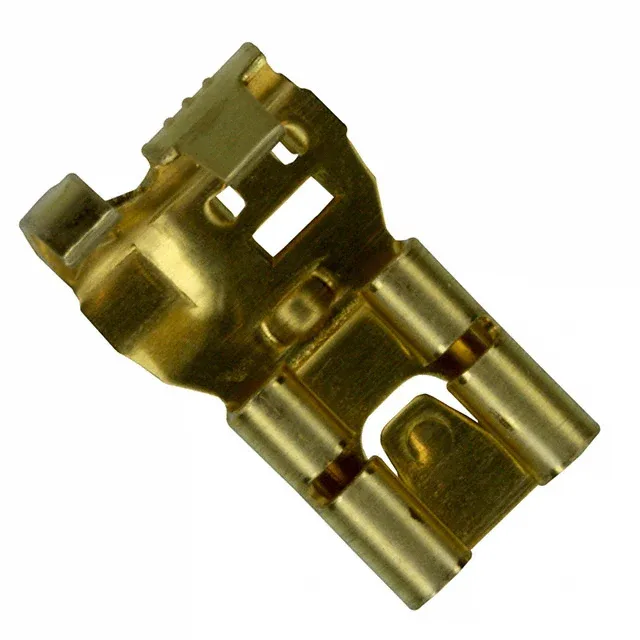

TE Connectivity AMP Faston quick-disconnect receptacle, order code 63445-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 12-18 AWG, non-insulated, right-angle flag, crimp termination, brass contact.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 12-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Insulation diameter | 0.110\" ~ 0.210\" (2.79mm ~ 5.33mm) |
The 63445-1 is a non-insulated female quick-disconnect receptacle in TE's Faston series, accepting 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The right-angle flag orientation routes the wire parallel to the tab plane, suiting tight spaces where an inline crimp would not fit. Crimp termination accepts 12-18 AWG wire with an insulation diameter range of 0.110" to 0.210" (2.79mm to 5.33mm).
The Utilux-series 1-1627194-4 is a same-width (0.250") non-insulated female receptacle with the same tab thickness (0.032") and brass contact material. It accepts 15-18 AWG wire — a narrower range than the 63445-1's 12-18 AWG — and ships in Box packaging. Verify the wire gauge and insulation diameter before cross-referencing.
