TE Connectivity AMP Connectors 63476-2 — Quick-Disconnect Terminals

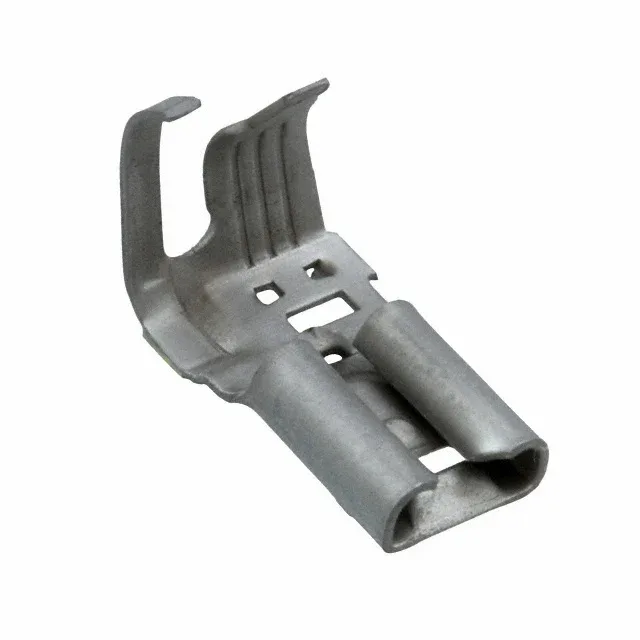

TE Faston 63476-2 Quick-Disconnect Terminal, 0.187" Tab

MPN63476-2
Active

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 63476-2, female, 0.187" (4.75 mm) tab width, 16-20 AWG, tin-plated brass, right-angle flag, crimp termination, non-insulated.

$0.2100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

63476-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge16-20 AWG
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.250\" (6.35mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Contact finishTin
Insulation diameter0.110\" ~ 0.170\" (2.79mm ~ 4.32mm)

Product details

Flag-style disconnect for tight wire routing

The 63476-2 is the 0.187" tab-width female member of TE's Faston quick-disconnect terminal line, terminated by crimp and oriented as a right-angle flag for in-line wire routing where a straight pull is not possible. Tin-plated brass contact accepts 16-20 AWG wire with an insulation diameter range of 0.110" to 0.170" (2.79 mm to 4.32 mm).

Tab width and wire gauge across Faston flags

Within the Faston right-angle flag family the 0.187" tab width and 16-20 AWG acceptance of the 63476-2 sit between the wider 0.250" tab width of the 63445-1 (12-18 AWG) and the 63315-1 (14-18 AWG), and alongside the same-width 60529-1 which uses a thicker 0.032" (0.81 mm) tab.

Frequently asked questions

What is the closest functional peer to the 63476-2 in the Faston series?

The 60529-1 shares the same 0.187" tab width and 16-20 AWG wire range but uses a 0.032" (0.81 mm) tab thickness versus the 0.020" (0.51 mm) of the 63476-2. The 63445-1 and 63315-1 use a 0.250" (6.35 mm) tab width for heavier wire gauges.
