0.250" tab, 12-18 AWG crimp receptacle
The 63555-2: Termination is crimp-only, non-insulated, with tin-plated brass contact material. The free-hanging right-angle mounting suits harness routing where the wire exits parallel to the tab plane.

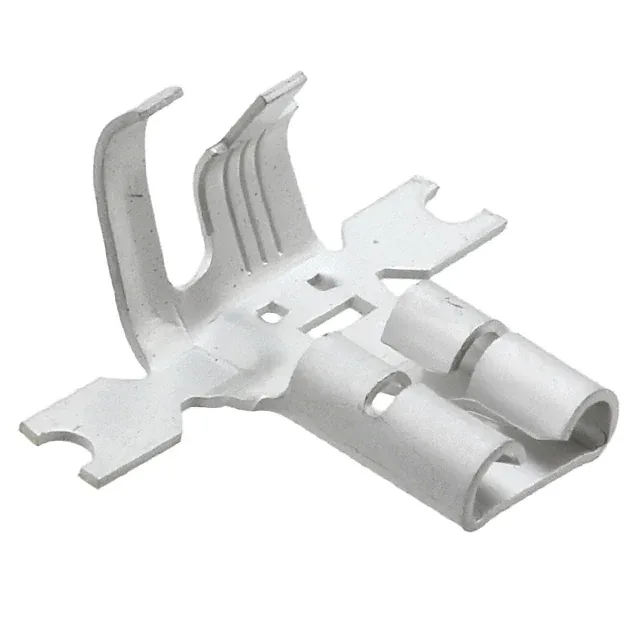

63555-2 TE Faston QC Receptacle, 0.250" Tab Width, 12-18 AWG
MPN63555-2
Active
TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 63555-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 12-18 AWG, non-insulated, tin-plated brass, crimp termination, free hanging right-angle.
$0.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Standard |
| Wire gauge | 12-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.110\" ~ 0.210\" (2.79mm ~ 5.33mm) |
