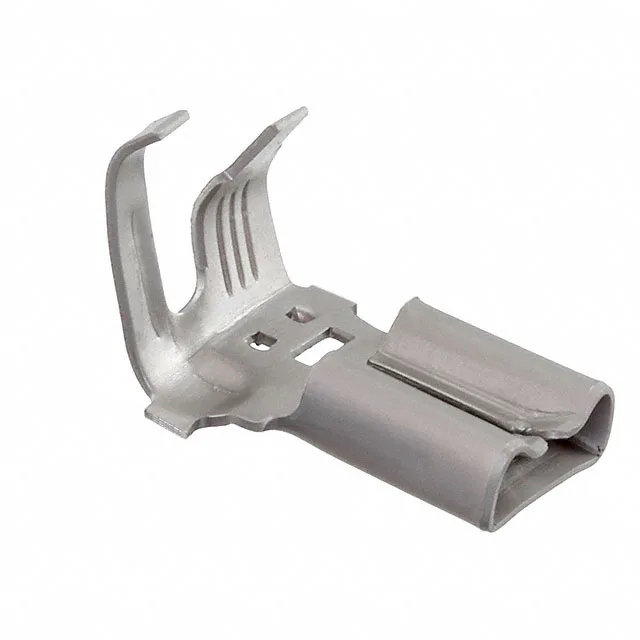

TE Connectivity AMP Faston quick-disconnect receptacle, order code 63604-1, female, 0.250" (6.35mm) tab width, 12-18 AWG, non-insulated, nickel-plated steel, crimp termination, free-hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 12-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Steel |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Nickel |
| Insulation diameter | 0.110\" ~ 0.210\" (2.79mm ~ 5.33mm) |
The 63604-1: Nickel-plated steel contact, crimp termination, free-hanging right-angle flag orientation — the insulation diameter range is 0.110" to 0.210" (2.79mm to 5.33mm).
The 1-280050-3 also carries a steel contact but accepts 15.5-20 AWG with a narrower insulation diameter of 0.091" to 0.130" (2.31mm to 3.30mm) — match the wire gauge range to the application.
The part is ROHS3 Compliant per the manufacturer listing.
Both are 0.250" tab width, 0.032" tab thickness, right-angle flag receptacles for 12-18 AWG — the difference is contact material (steel vs brass). The mechanical fit is the same.
