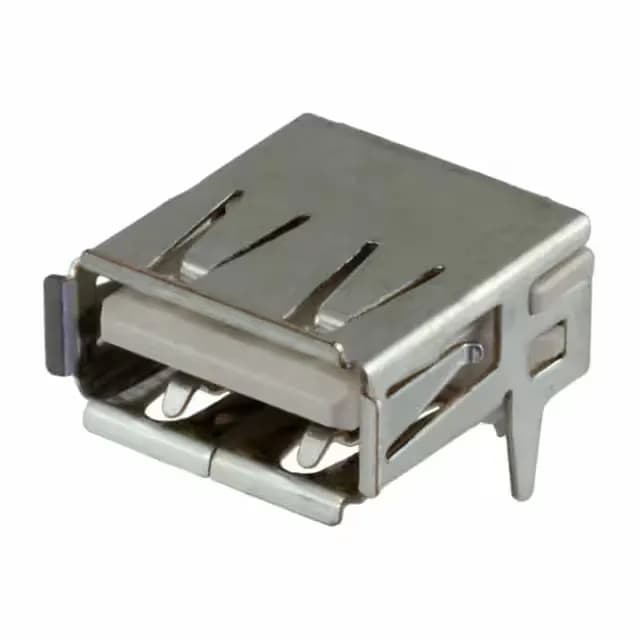

TE Connectivity 6364372-2, USB-A (Type-A) receptacle, 4 contacts, USB 2.0, right-angle through-hole, 1A per contact, 30VAC, 1500 mating cycles, gold or gold-palladium contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C~85°C |
| Insulation color | Natural |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tube |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold or Gold-Palladium |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The right-angle through-hole mounting orients the port horizontally to the PCB, which is the typical layout for rear-panel I/O or board-edge USB jacks on industrial controllers, test equipment, and embedded systems. The housing is molded in natural UL94 V-0 rated thermoplastic, and the shell is steel or stainless for EMI containment and mechanical robustness.
The contacts are finished with gold or gold-palladium, rated for 1500 mating cycles.
Yes, the 6364372-2 is RoHS compliant per the current EU directive, with no restricted substances in the contact plating or housing material.
