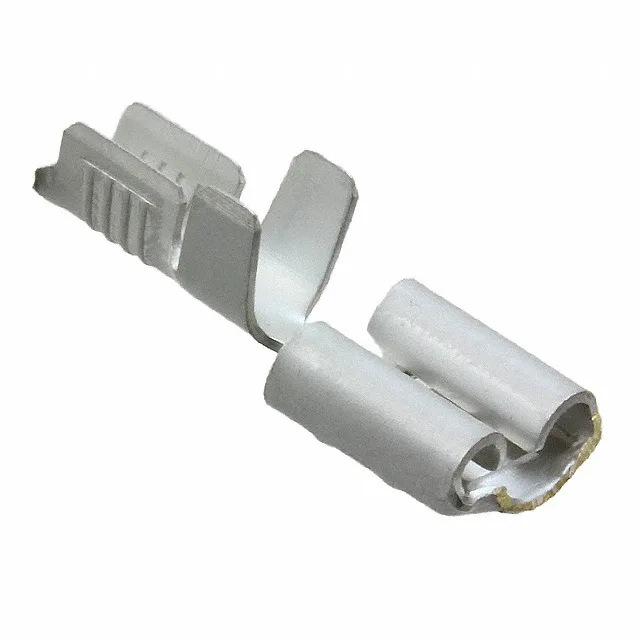

TE Connectivity AMP Faston quick-disconnect receptacle, order code 63655-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.755\" (19.18mm) |
| Insulation diameter | 0.120\" ~ 0.170\" (3.05mm ~ 4.32mm) |
The 63655-1: Tin-plated brass construction, 0.020" (0.51mm) tab thickness, overall length 0.755" (19.18mm).
The 63655-1's 0.250" tab width and 14-18 AWG range place it between the narrower 0.110" (2.79mm) 61158-1 (18-22 AWG) and the wider 0.250" 63445-1 (12-18 AWG) with a thicker 0.032" (0.81mm) tab. The 41274 shares the same tab width and wire range but uses a 0.032" tab thickness.
Female receptacle — mates with a 0.250" (6.35mm) male tab.
