TE Connectivity AMP Connectors 6368419-1 — Modular Jacks (RJ)

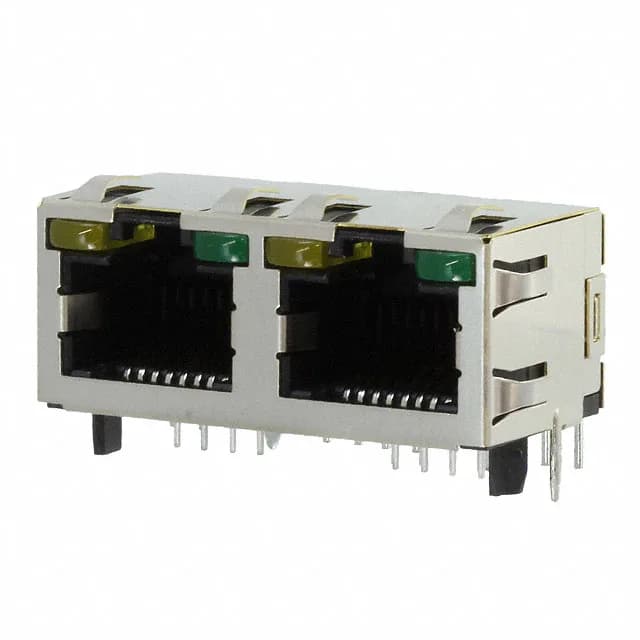

TE 6368419-1 Modular Jack, 8P8C R/A Shielded, Cat5

MPN6368419-1
Active

TE Connectivity 6368419-1 modular jack, 8P8C (RJ45), right-angle, shielded with EMI finger, Cat5, gold 50µin contacts, through-hole solder, -40 to 85°C.

$10.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6368419-1 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6368419-1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorYellow - Green
Contact materialPhosphor Bronze
Housing materialThermoplastic
PackageTray
RatingsCat5
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionUp
Contact finishGold
Rows1
Number of ports2
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The yellow-green LED provides link/activity status indication on the panel face.

Shielding and EMI Protection

The tab direction is up, which orients the shield ground path consistently for board layouts where the panel opening is above the connector body.

Cat5 Rating and Data Performance

Rated Cat5, the 6368419-1 supports 100 MHz signaling, sufficient for 100BASE-TX and 1000BASE-T (Gigabit Ethernet) over twisted-pair cabling. The shielded construction and EMI finger help maintain the signal integrity needed for that data rate in electrically noisy environments like industrial panels or server racks.

Frequently asked questions

Does 6368419-1 have a shielded EMI finger?

Yes, the 6368419-1 is shielded and includes an EMI finger that grounds the connector body to the panel, reducing radiated emissions and improving signal integrity in noisy environments.
