TE Connectivity AMP Connectors 6368459-1 — Modular Jacks (RJ)

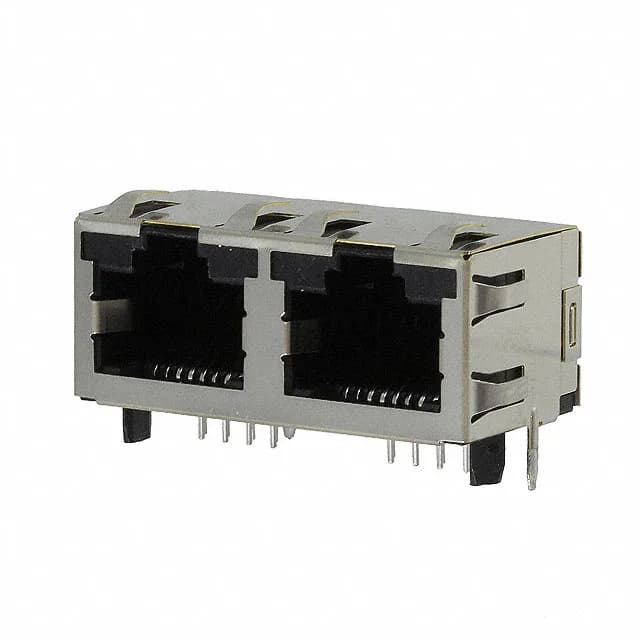

TE Connectivity 6368459-1 Modular Jack, 8P8C, Cat5, Shielded

MPN6368459-1
Active

TE Connectivity 6368459-1 modular jack, 8P8C (RJ45, Ethernet), Cat5, right-angle through-hole, shielded with EMI fingers, gold 50.0µin (1.27µm) contact finish, tray.

$7.5700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 6368459-1 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6368459-1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialThermoplastic
PackageTray
RatingsCat5
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionUp
Contact finishGold
Rows1
Number of ports2
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The TE Connectivity 6368459-1 is a shielded RJ45 modular jack with 8P8C (8 position, 8 contact) configuration, rated for Cat5 Ethernet applications.

The Cat5 rating means this jack is specified for 100 MHz signaling — sufficient for 100BASE-TX and 1000BASE-T (Gigabit Ethernet) over four twisted pairs, but not certified for the 250 MHz bandwidth Cat6 demands. The thermoplastic housing carries no UL flammability rating in the listing, but the board guide helps locate the jack during hand or wave-solder assembly.

Shielding and Termination

This is a shielded jack with an EMI finger — the metal shell contacts the panel cutout or chassis ground, and the fingers provide a low-impedance path for conducted emissions. Solder termination suits wave-solder or hand-solder assembly; the through-hole leads give stronger mechanical retention than an SMT version would.
