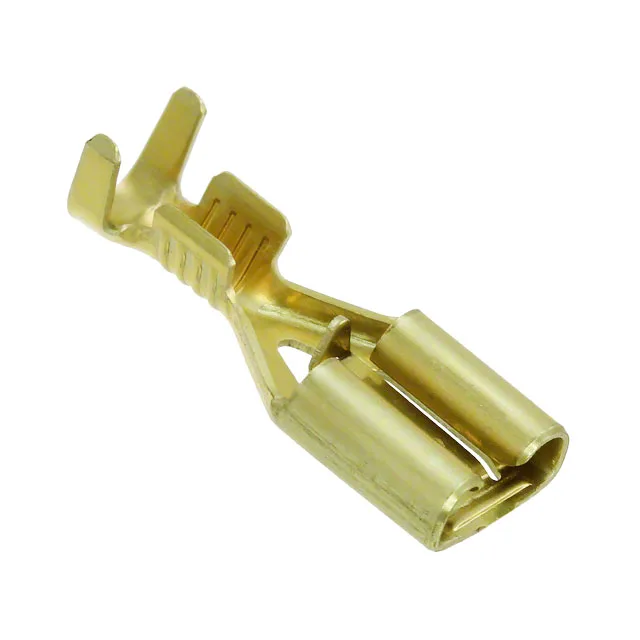

TE Connectivity AMP Connectors Mark III quick-disconnect terminal, order code 63854-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, brass, non-insulated, crimp termination, free hanging (in-line), Tape & Reel.
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.293\" (7.44mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.771\" (19.58mm) |
| Insulation diameter | 0.090\" ~ 0.155\" (2.29mm ~ 3.94mm) |
Within the Mark III series the 63854-1 (14-18 AWG) is the heavier-gauge sibling of the 63933-1 (18-22 AWG); both share the same 0.250" tab width, 0.032" tab thickness, brass contact material, and overall length. The 63854-2 is identical to the 63854-1 except for a tin-plated contact finish.
The 63854-2 is identical to the 63854-1 except for a tin-plated contact finish.
The 63854-1 accepts 14-18 AWG wire.
