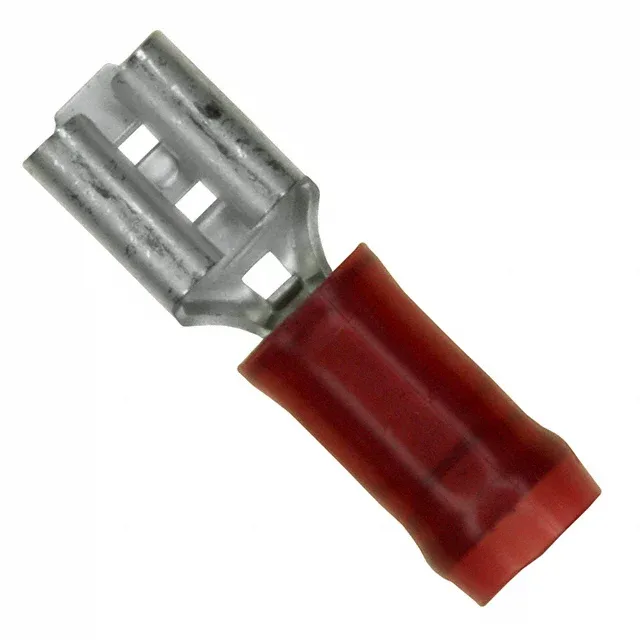

640917-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 640917-1 Faston PIDG QC Receptacle 18-22 AWG

MPN640917-1
Active

TE Connectivity AMP Connectors Faston, PIDG quick-disconnect receptacle, order code 640917-1, female, 0.187" (4.75mm) tab width, 18-22 AWG, tin-plated brass contact, crimp termination, free hanging, non-mating end insulated, bulk.

$0.3700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

640917-1 Technical Specifications
ParameterValue
SeriesFaston, PIDG
Mounting typeFree Hanging (In-Line)
Terminal typeStandard
Wire gauge18-22 AWG
ColorRed
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageBulk
InsulationNon-Mating End Insulated
Tab length0.250\" (6.35mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Contact finishTin
Length - overall0.800\" (20.32mm)
Insulation diameter0.135\" (3.43mm)

Product details

Insulated quick-disconnect for 18-22 AWG

The 640917-1 is a female Faston PIDG quick-disconnect receptacle accepting 0.187" (4.75mm) tab width and 0.020" (0.51mm) tab thickness, crimp-terminated onto 18-22 AWG wire. The non-mating end is insulated with a red sleeve; the tin-plated brass contact carries the current path in a free-hanging, in-line mount.

Packaging variant and tab-width siblings

The 640917-1 ships in bulk; the functionally identical 640917-2 is the same terminal packaged on Tape & Reel and Cut Tape for automated placement. Within the Faston PIDG family the 0.187" tab-width 640917-1 sits alongside the 0.205" (5.21mm) tab-width 640911-1 (0.032" tab thickness) and 640909-1 (0.020" tab thickness) — all share the same 18-22 AWG wire range, red insulation, and overall length.

Frequently asked questions

Will 640917-1 drop into a panel that was specified around 640917-2 without rewiring?

Yes — the 640917-1 and 640917-2 share the same tab width, wire gauge, insulation diameter, and overall length; the only difference is packaging (bulk vs tape and reel).
