TE Connectivity AMP Connectors 6450173-1

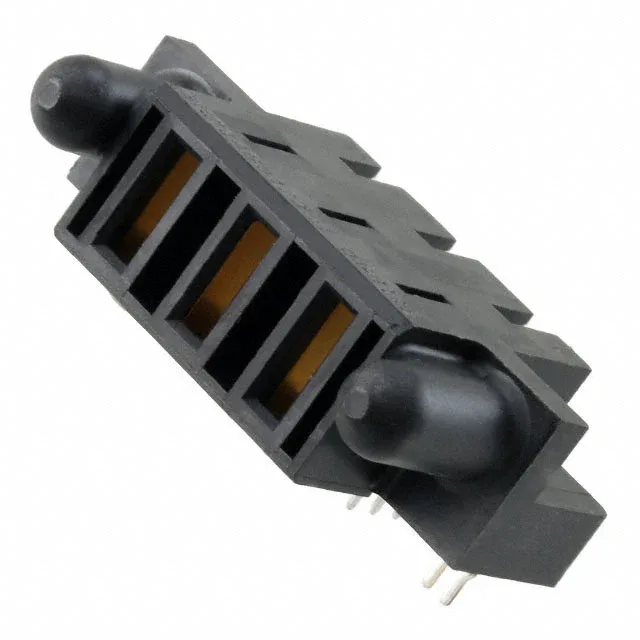

TE 6450173-1 MULTI-BEAM XL Receptacle, 3 Power Contacts

MPN 6450173-1
Active

TE Connectivity MULTI-BEAM XL receptacle, 3 power positions, single row, right-angle through-hole, solder termination, 30.0µin gold contact finish, board lock, guide pin, UL94 V-0.

$6.7800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMULTI-BEAM XL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6450173-1 specifications
ParameterValue
SeriesMULTI-BEAM XL
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Blade Sockets
Voltage rating300V
Operating temperature-20°C ~ 105°C
Material flammability ratingUL94 V-0
PackageBulk
FeaturesBoard Lock, Guide Pin
TerminationSolder
Contact finishGold
Rows1
Positions3
Contact layout, typical3 Power
Contact finish thickness30.0µin (0.76µm)

Product details

Three Power Blades in a Single Row — Pure Bus-Level Interconnect

The TE Connectivity 6450173-1 is a MULTI-BEAM XL receptacle with three female blade sockets arranged in a single row — a dedicated power-only contact layout (3 Power) that carries bus-level current on each blade. Operating temperature spans -20°C to 105°C.

Board Lock and Guide Pin — Assembly and Vibration Anchors

This receptacle includes a board lock and a guide pin. The board lock holds the connector in place during solder reflow and provides mechanical retention against the shear force from a mated cable assembly under vibration. The guide pin aligns the mating plug during blind-mate assembly — a real time-saver on a production line where the connector is not easily visible. Both features are standard on MULTI-BEAM XL power connectors that see use in server PSUs, base-station power distribution, and battery interconnect trays.

How It Compares — 6450173-1 vs. 2-1437357-0

The real difference is current capacity: the 2-1437357-0 is rated 28 A per contact, while the 6450173-1 does not have a published per-contact current rating in the spec record. If your design needs a guaranteed 28 A per blade, the 2-1437357-0 is the documented choice; if you are working from a known system current and the Bulk packaging suits your line, the 6450173-1 is the active-production option. Both use the same right-angle through-hole footprint and gold contact finish, so the board layout is interchangeable.
