6-Position Power Header for Backplane and Power Distribution

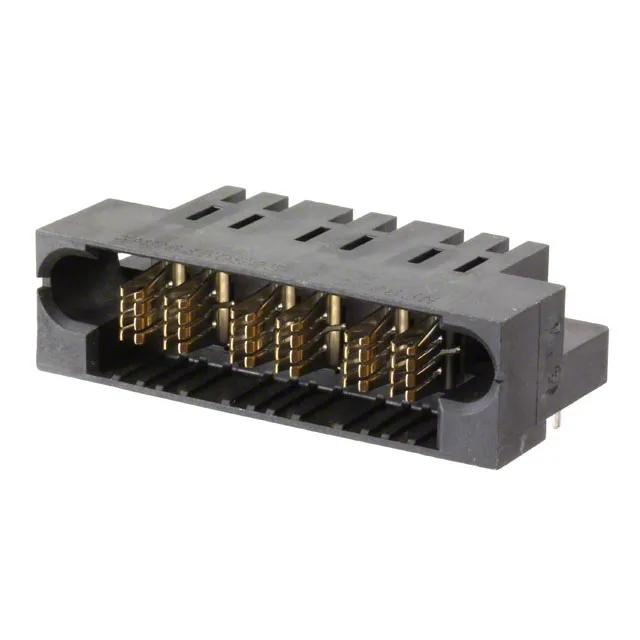

It uses press-fit termination for solderless assembly into a through-hole, right-angle mounting orientation — the blades sit parallel to the PCB plane, suited for board-edge power input or backplane mid-plane connections.
Press-Fit Termination and Right-Angle Board Layout
This makes the 6450523-2 a natural fit for backplane assemblies where solderless assembly reduces thermal stress and simplifies rework. That geometry matters when the header sits near the edge of a power distribution board or a server PSU card, where vertical clearance is tight. A mating guide is built into the header — an alignment feature that helps the receptacle find its target during blind-mate installation in a card cage or chassis. On a 6-position power connector, this reduces the risk of bent blades when the board is slid into a backplane slot.
Current Rating and Contact Duty
All 6 positions are loaded as power contacts — there are no signal pins in this layout. The 200V voltage rating gives headroom for 48V telecom rails or 120V industrial supplies without creeping up against the dielectric limit.
Mating Connector and Cross-Reference
The 6450523-2 mates with the corresponding MULTI-BEAM XL receptacle housing — a female connector that accepts the blade contacts and terminates to the cable or busbar assembly.
