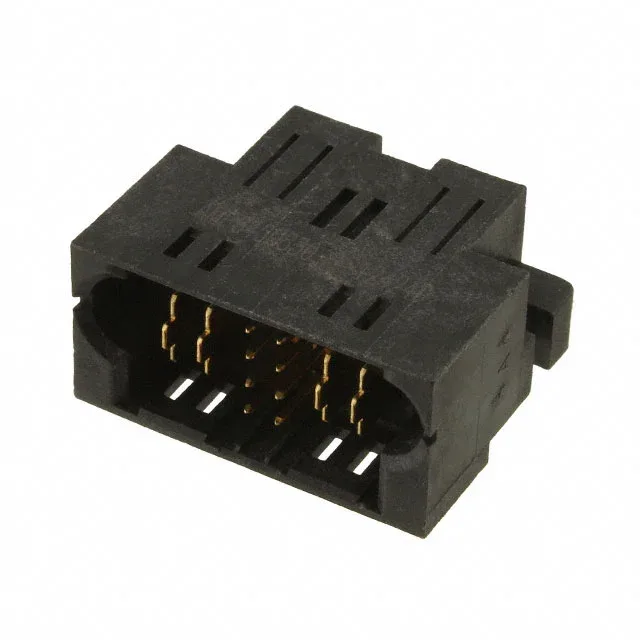

TE Connectivity MULTI-BEAM XLE header, 12 positions (8 signal, 4 power), 0.100" (2.54mm) pitch, through-hole right-angle solder termination, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | MULTI-BEAM XLE |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header, Male Pins and Blades |
| Operating temperature | -20°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Mating Guide |
| Termination | Solder |
| Rows | 4 |
| Positions | 12 |
| Contact layout, typical | 8 Signal, 4 Power |
The 6450830-1: The 8-signal, 4-power split is not a uniform array — the power blades are physically larger and carry the main DC rail current, while the signal pins handle low-level logic or sense lines. This hybrid layout saves board space compared to running separate power and signal connectors, but it means the BOM must account for two different crimp terminal types in the mating receptacle.
It is RoHS3 compliant.
Submit a request for your target quantity and we will confirm current pricing and lead time at quote time.
The 6450830-1 mates with the matching MULTI-BEAM XLE receptacle housing (not included). The receptacle accepts the same 8-signal, 4-power contact layout and uses the same 0.100" (2.54mm) pitch.
