TE Connectivity MULTI-BEAM XLE header, male blades, 7 positions, 1 row, 0.118" (3.00mm) pitch, right-angle board-edge through-hole, solder termination, gold 30.0µin contact finish, UL94 V-0 black housing with board lock and mating guide.
| Parameter | Value |
|---|---|
| Series | MULTI-BEAM XLE |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.118\" (3.00mm) |
| Package | Tray |
| Features | Board Lock, Mating Guide |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 7 |
| Contact layout, typical | 7 Power |
| Contact finish thickness | 30.0µin (0.76µm) |

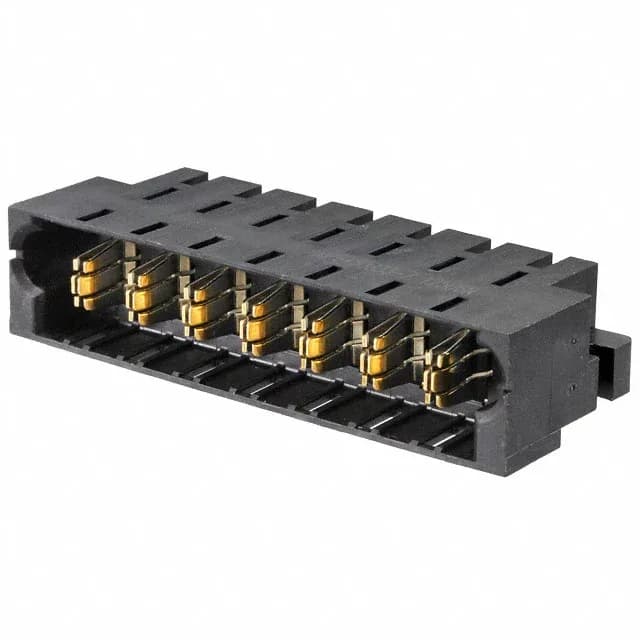

The TE Connectivity 6450833-7 is a 7-position MULTI-BEAM XLE header carrying male power blades on a single row at 0.118" (3.00mm) pitch. All 7 positions are loaded as power contacts — this is a dedicated DC distribution interconnect, not a mixed signal/power layout.
A molded mating guide aligns the connector pair before the blades engage, protecting the contacts from stubbing during blind-mate assembly.
Submit your BOM quantity for a same-day pricing and availability check.
The 6450833-7 header mates with the matching MULTI-BEAM XLE receptacle housing and female power contacts. The mating half uses the same 0.118" (3.00mm) pitch and 7-position layout — confirm the receptacle order code against your harness assembly drawing.
The TE Connectivity product drawing and specification sheet for the MULTI-BEAM XLE series covers the 6450833-7. Request the current revision through the storefront with your RFQ — the datasheet is included with the quote package.
