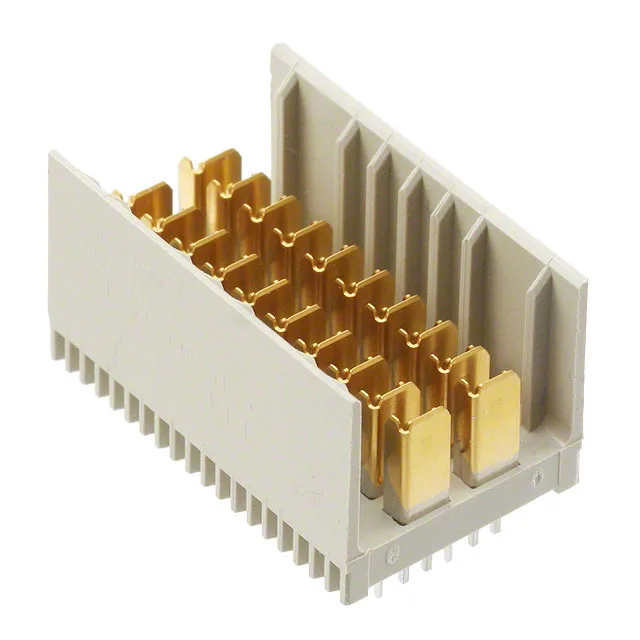

6469025-1 — TE Connectivity AMP Connectors product photo

TE Connectivity 6469025-1 Z-PACK HM-Zd Header, 60 Pos

Name: 6469025-1
Brand: TE Connectivity AMP Connectors
SKU: 6469025-1
Availability: LimitedAvailability
Author: Terminal-Block Tobias

MPN6469025-1

Active

TE Connectivity Z-PACK HM-Zd header, male pins and blades, 60 positions, 4 rows x 10 columns, 0.098" (2.50mm) pitch, press-fit termination, gold 30.0µin plating, 0.700A per contact, 250V, UL94 V-0.

$13.7300Ref. price · indicative, final on quote

RFQ

6469025-1 datasheet

StockContact for availability

MOQ1 pcs

New & original stockTraceable channels only — no mixed lots, no re-taped reels.
Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
Photo-verified countsEvery line counted and photographed before the box closes.
PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

6469025-1 Technical Specifications
Parameter	Value
Series	Z-PACK HM-Zd
Mounting type	Through Hole
Connector type	Header, Male Pins and Blades
Voltage rating	250V
Current rating	0.700A
Connector usage	Backplane
Operating temperature	-65°C ~ 105°C
Material flammability rating	UL94 V-0
Pitch	0.098\" (2.50mm)
Package	Tube
Termination	Press-Fit
Contact finish	Gold
Rows	4
Number of columns	10
Positions	60
Contact layout, typical	40 Signal, 20 Ground
Contact finish thickness	30.0µin (0.76µm)

Product details

Backplane Header for High-Speed Differential Routing

The TE Connectivity 6469025-1 is a 60-position header from the Z-PACK HM-Zd series, designed as a high-speed backplane connector. It uses a 4-row by 10-column grid at a 0.098" (2.50mm) pitch, with a contact layout of 40 signal and 20 ground contacts — the ground pins provide return-path density for differential pairs. The press-fit termination eliminates solder joints, which keeps the assembly compatible with reflow-free backplane builds and reduces thermal stress on the board.

Press-Fit Termination and Backplane Fit

The through-hole mounting provides mechanical retention against the insertion force of the mating receptacle. The 60-position count matches a 10-column backplane pattern. The 4-row arrangement with dedicated ground contacts keeps the signal-to-ground ratio balanced for controlled impedance routing.

Frequently asked questions

What is the pitch of 6469025-1?

The pitch is 0.098" (2.50mm), which is the standard column spacing for the Z-PACK HM-Zd backplane pattern. This pitch drives the PCB footprint and the routing channel width for differential pairs.

Is 6469025-1 compatible with Z-PACK HM-Zd backplane?

Yes, the 6469025-1 is a Z-PACK HM-Zd header designed for use with the matching Z-PACK HM-Zd receptacle on the backplane. The press-fit termination and 4-row x 10-column layout are specific to this backplane platform.
