48-Position DIN 41612 Plug for Backplane and Card-Cage Wiring

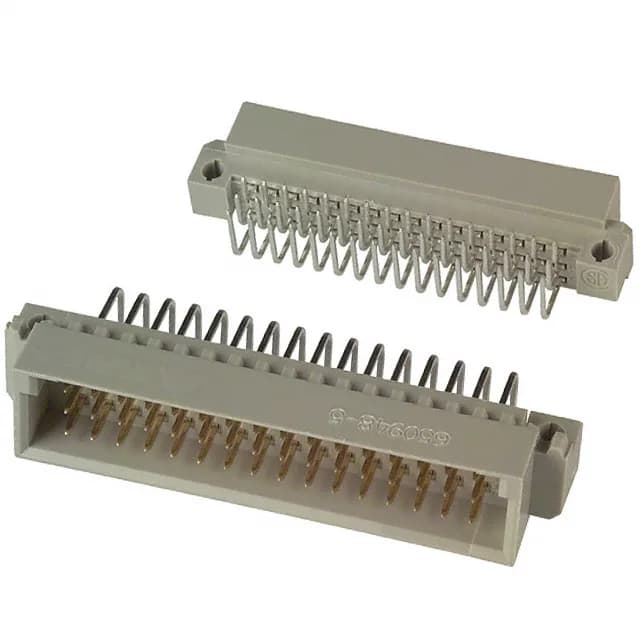

The TE Connectivity 650948-5 is a 48-position DIN 41612 plug from the Eurocard series, built for the C/2 (1/2 C) style format. This connector is designed for Eurocard backplane and card-cage applications where the plug half mounts on the daughter card and mates with a fixed receptacle on the backplane.
Right-Angle Solder Tails for Board-Edge Mounting
The through-hole solder tails give a mechanical anchor that handles the insertion force of a full 48-pin mate without relying on the solder joints alone. Gold finish on the contacts keeps the mating surface oxide-free for the multiple insertion cycles typical of a card-cage system.
Operating Range and Environmental Rating
The UL94 V-0 polyester insulation means the housing will not support combustion inside an enclosure — a standard requirement for equipment that must pass a flame test. The RoHS status is non-compliant, so if your BOM requires RoHS-10 or RoHS-6 materials, flag this part for review before specifying it into a new design.
