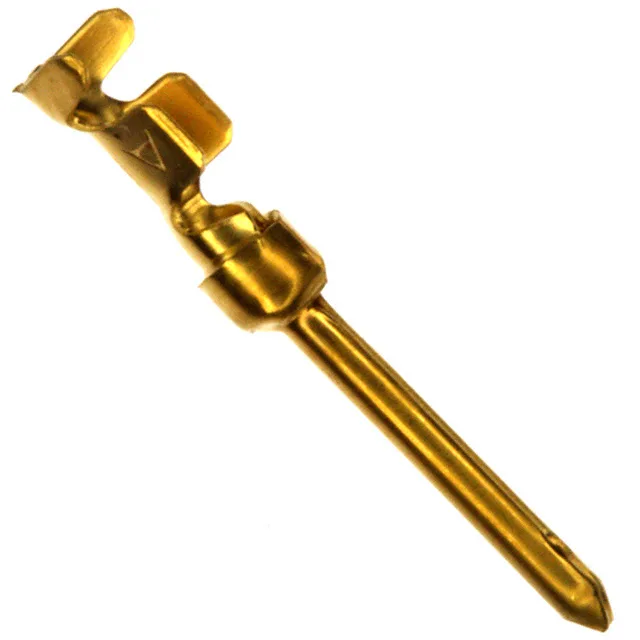

66506-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 66506-8 AMPLIMITE HDP-20 Stamped Pin, 20-24 AWG

MPN66506-8
Active

TE Connectivity AMPLIMITE HDP-20 series, 66506-8, Stamped pin contact, 20-24 AWG, Gold 50.0µin (1.27µm), Crimp termination, Bulk package.

$1.4600Ref. price · indicative, final on quote
66506-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66506-8 Technical Specifications
ParameterValue
TypeStamped
SeriesAMPLIMITE HDP-20
Wire gauge20-24 AWG
Contact materialBrass
PackageBulk
Pin or socketPin
Contact finishGold
Contact terminationCrimp
Contact finish thickness50.0µin (1.27µm)

Product details

Stamped Pin for AMPLIMITE HDP-20 D-Sub Connectors

The TE Connectivity 66506-8 is a stamped pin contact from the AMPLIMITE HDP-20 series, designed for crimp termination onto 20-24 AWG wire. This is the male half of the contact pair, intended for use in D-subminiature connector housings where field-reliable, solderless connections are needed. The gold finish at 50.0µin (1.27µm) gives it the mating cycle durability for equipment that gets re-pinned in the field — think test racks, industrial controls, or serial communication panels where you want a contact that survives multiple insertions without fretting.

Contact Finish and Wire Range

The brass base material gives good spring properties in the crimp barrel.

Frequently asked questions

What is the compatible socket contact for 66506-8?

The 66506-8 is a pin (male) contact. It mates with the corresponding AMPLIMITE HDP-20 socket (female) contact, which is typically ordered as a separate part number in the same series. The specific socket contact depends on the wire gauge and plating requirements of your harness.

What wire gauge does 66506-8 accept?

The 66506-8 accepts 20-24 AWG wire for crimp termination. This covers typical signal and low-power wiring used in D-subminiature connector harnesses.
