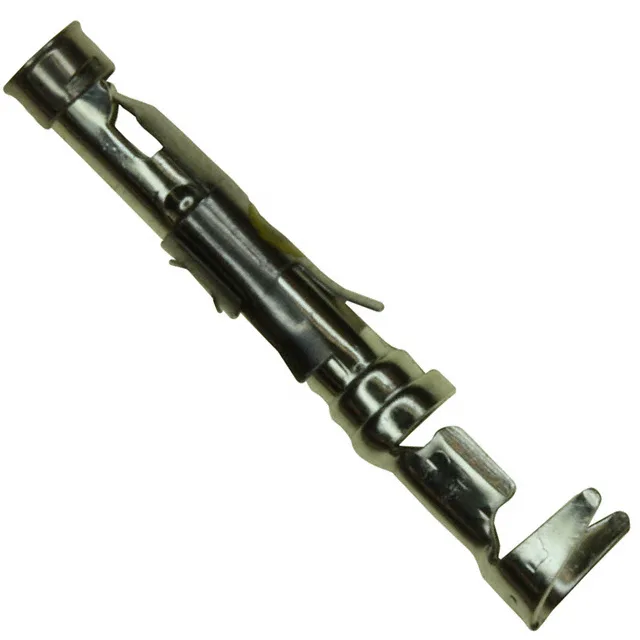

66565-7 TE Multimate III+ Socket Contact, Tin, 20-24 AWG

MPN66565-7
Active

TE Connectivity Multimate III+ crimp socket contact, 66565-7, tin-plated brass, 20-24 AWG, 50.0µin finish, bulk.

$1.0700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

66565-7 Technical Specifications
ParameterValue
SeriesMultimate III+
Wire gauge20-24 AWG
Contact materialBrass
PackageBulk
Pin or socketSocket
Contact finishTin
Contact terminationCrimp
Contact finish thickness50.0µin (1.27µm)

Product details

This is the female terminal — the socket half that accepts the male pin — and it terminates 20-24 AWG stranded wire via a standard crimp operation.

Where this contact fits in the Multimate III+ system

The Multimate III+ series is TE's modular power and signal connector platform, common in power supplies, industrial controls, and test equipment.

Crimp termination and tooling

This contact uses a standard crimp termination — no soldering required. The 20-24 AWG wire range covers common signal and moderate-power wiring found in internal harnesses.

Frequently asked questions

What housings are compatible with the 66565-7 socket contact?

This socket contact is designed for the TE Multimate III+ series housings, including CPC (Circular Plastic Connector) and other cavity-based shells that accept the standard Multimate III+ contact format. The contact inserts into the socket cavity of the matching receptacle housing.
