TE Connectivity AMP Connectors 696422-4
MPN696422-4
Active

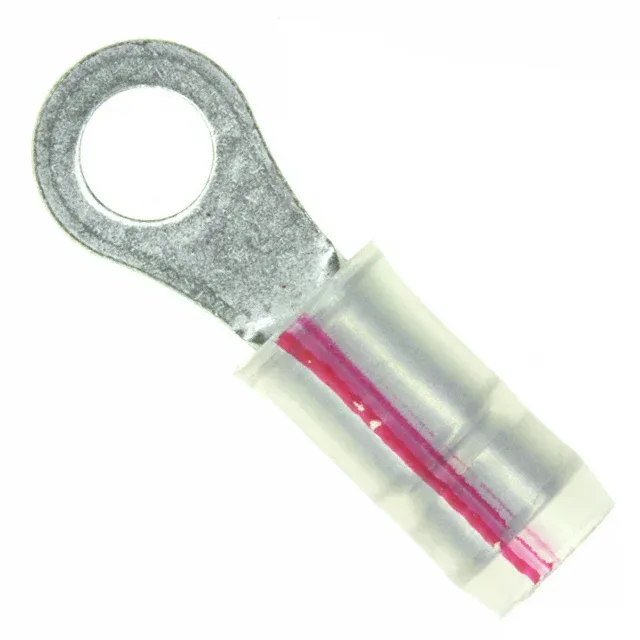

CONN RING CIRC 16-22AWG #6 CRIMP
$0.8800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Natural, Red Stripe |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyvinylidene Fluoride (PVDF) |
| Package | Bulk |
| Features | Radiation Resistant, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.787\" (20.00mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
