Barrier Block for Panel Wiring — 2 Circuits, 25A Capacity

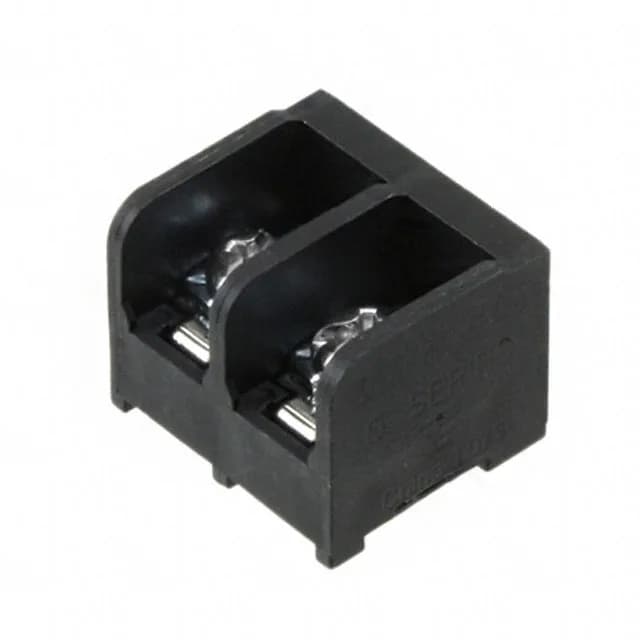

The 6PCV-02-006: It carries a 25A current rating at 300V, accepting wire from 12 to 22 AWG through its two wire entries. The 0.375" (9.53mm) pitch spaces the circuits for adequate creepage, and the 3-wall (Tri) barrier isolates each terminal position. This block is suited for power distribution, control panel wiring, and industrial equipment where a compact, two-position fused or unfused connection point is needed on a PCB.
Termination and Wire Fit
The 12-22 AWG wire range covers common power and control cable sizes — the 25A rating is achievable with the larger end of that gauge range, while 22 AWG signal wiring stays within the block's capacity for lower-current taps. The single-row layout with two wire entries matches the two circuits exactly, so each screw position terminates one conductor.
The 6PCV-02-006 carries a ROHS3 compliance rating and a UL94 V-0 flammability classification on the thermoplastic insulation. The product status is Active, so no end-of-life or last-time-buy concern exists for this BOM line.
