TE Connectivity AMP Connectors 6PCV-05-006

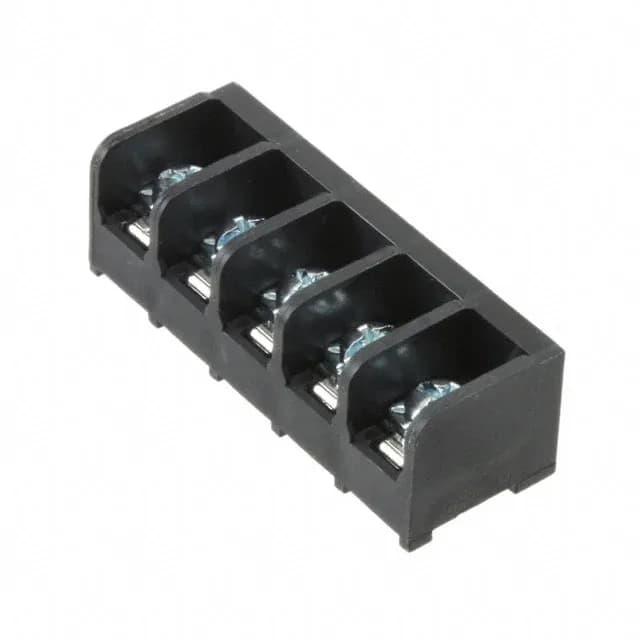

6PCV-05-006 TE Connectivity #6 Buchanan Barrier Block

MPN 6PCV-05-006
Active

TE Connectivity #6, Buchanan barrier strip, 5 circuits, 0.375" (9.53mm) pitch, 25A, 300V, 12-22 AWG, through hole, PC pin bottom termination, UL94 V-0.

$4.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
Series#6, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

6PCV-05-006 key specifications
ParameterValue
Series#6, Buchanan
Barrier type3 Wall (Tri)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating25A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries5
Terminal screw materialSteel
Operating temperature105°C
ColorBlack

All specifications

6PCV-05-006 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
Rows1
Top terminationScrews
Bottom terminationPC Pin
Number of circuits5

Product details

Barrier block for panel wiring

The TE Connectivity 6PCV-05-006 is a 5-circuit barrier strip from the #6 Buchanan series, built for terminated power and control wiring inside an enclosure. 0.375" (9.53mm) pitch gives the standard spacing for this terminal block class — the screw terminals accept 12-22 AWG wire and clamp down with steel screws finished in zinc clear chromate. Rated 25A at 300V, with a three-wall (tri) barrier that prevents turn-to-turn shorts between adjacent circuits.

Sizing the wire and the termination

Top termination uses screws, so the wire is stripped, inserted under the clamp plate, and torqued down. The 25A rating holds at the full 12 AWG end of the range; derate as the wire gauge gets smaller and the ambient temperature climbs toward the 105°C operating limit. Black housing, single row, one wire entry per circuit — no shared terminals, no daisy-chaining through the block.

Active production, sourced per BOM

RoHS compliant per the listing. No official replacement or cross-reference has been issued for this part number.
